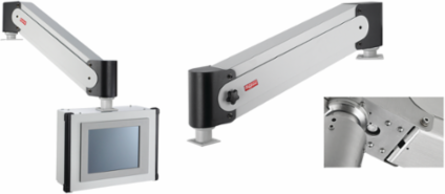

nVent Hoffman VHD36 Syspend VHD-Motion Arm Type 4, 10.18x40.65x4.86, Lt Gray, Steel

Syspend VHD-Motion Arm Type 4, 10.18x40.65x4.86, Lt Gray, Steel
  • MPN: VHD36
  • UPC: 783510185138
  • PPN: HOF-VHD36
  • UNSPSC: 39121325

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

A vertical heavy-duty pendant arm for repositioning HMI enclosure in industrial environments. This Syspend VHD-Motion Arm Type 4, VHD36 item measures 10.18x40.65x4.86 inch with a material of Steel colored Lt Gray.

Features

  • 26-in. arm supports loads of 45-125 lb. with 13-in. of vertical height adjustment
  • 36-in. arm supports loads of 25-75 lb. with 20-in. of vertical height adjustment
  • Field-adjustable gas spring counterbalance allows the user to adjust lifting force by turning an adjustment mechanism under the arm
  • Angle of gas springs is adjustable (not the pressure); allows lifting force to be increased or decreased at any time for changes in load
  • Tension adjustment at front of the arm provides additional fine-tuning of lifting force
  • Easily attach to an HMI enclosure using a 60-x-60-mm enclosure mounting pattern (enclosure must be ordered separately)
  • 1.3-in. internal cable pathway maintains NEMA Type 4 and 12 enclosure rating and protects wires and cables
  • Gasketed mounting surfaces at both ends of arm maintain seal integrity
  • Enclosure and arm can be swiveled 330 degrees with swivel stops available in 30-degree increments
  • Standard models are available with machine-top mounting (wall-mount and post-mount adapters sold separately)
  • Optional floorpost available

Specifications

Specifications

BABA
Yes, BABA Compliant
Width (W)
1,033
Protection Rating
NEMA Type 12
Finish
Powder Coated
Color Code
RAL 7035
Arm Length
27
Sub Brand
Syspend
Size
10.18x40.65x4.86 in
Height (H)259
Depth (D)123
Product FamilySyspend
ColorLight Gray
Load Capacity11
Weight54.5
MaterialSteel
NEMA Rating12 Indoor, dust-resistant
