nVent Hoffman VL22 Syspend VL-Motion Arm Type 4, 6.72x25.5x3.5, Lt Gray, Aluminum
- MPN: VL22
- UPC: 783510186821
- PPN: HOF-VL22
- UNSPSC: 39121325
CAD
$3453.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

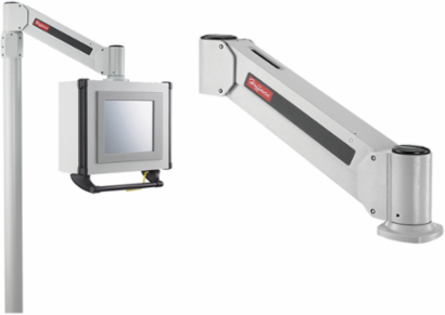

A cast aluminum vertical locking pendant arm for lifting and repositioning HMI enclosure. This Syspend VL-Motion Arm Type 4, VL22 item measures 6.72x25.5x3.5 inch with a material of Aluminum colored Lt Gray.
Features
- Field-adjustable internal gas spring counterbalance supports loads of 30-100 lbs.
- Gas springs are set to maximum pressure (100 lb. load) and lifting force can be reduced through a sealed access cap in the top of the arm
- Lifting force cannot be increased once spring pressure is reduced
- Provides 13 in. of vertical height adjustment
- Release handle automatically locks arm in place when repositioned vertically
- Easily attach to an HMI enclosure using a 60-x-60-mm enclosure mounting pattern (enclosure must be ordered separately)
- 1.4-in. internal cable pathway maintains NEMA Type 4 and 12 enclosure rating and protects wires and cables
- Gasketed mounting surfaces at both ends of arm maintain seal integrity
- Enclosure and arm can be swiveled 320 degrees
- Mounting adapter is required with options of wall-mount, machine-top-mount and post-top-mount
- Optional floorpost available
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 648
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Load Capacity
- 30
- Sub Brand
- Syspend
- Size
- 6.72x25.5x3.5 in
- NEMA Rating
- 12 Indoor, dust-resistant
Height (H)171
Depth (D)89
Product FamilySyspend
Color CodeRAL 7035
Weight21.5
MaterialAluminum
ColorGray
