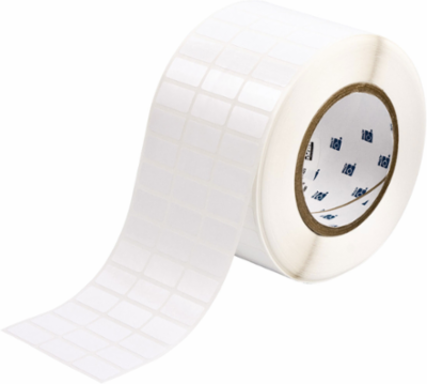

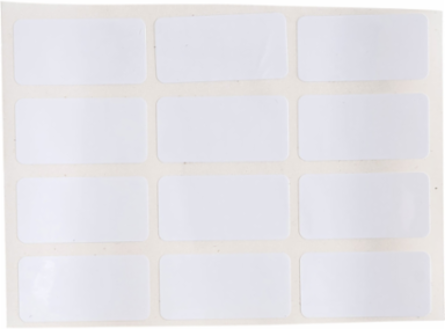

Brady THT-5-7546-10 VOID Indicating labels, 0.5" H x 1" W, Roll of 10000 Labels, White

MPN: THT-5-7546-10
UPC: 662820208129
PPN: BRD-THT-5-7546-10
UNSPSC: 55121612

$597.99

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

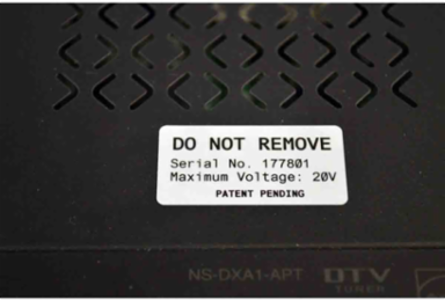

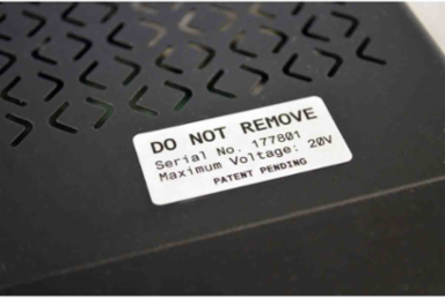

Tamper-Evident Polyester (B-7546) leaves a "VOID" footprint when the label is removed and leaves a "VOID" pattern on the top surface of the label to prevent reuse.

Features

Gloss white polyester with tamper indicating acrylic is ideal for rating and serial plates that require high performance and evidence of label removal
Excellent chemical, oil and water resistance
UL Recognized;CSA Accepted
Service temperature of -40 to 175° F (-40 to 80° C)

Documentation & Downloads

Specifications

Key Specifications

Applications	General Identification; Security Identification
Bulk Part	Not a Bulk Part
Compatible Surface Types	High Surface Energy
Enables Industry Compliance	ASTM D 1000; ASTM G 26; CSA Approved; UL Recognized
For Use with Printer	BBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Primary Noun, Basic Function	Label
Printer and Label Applications	General Identification; Inspection Repair; Rating & Name Plates
Printer Compatibility (Print)	BBP12; i7100; i5100
Quantity per Row	3
Ribbon Series	R6000HF
Suggested Ribbon Series	R4400; R6000 Halogen Free
Total Qty per Pack	10000 Label(s) / Roll
Trade Name	Defender
Brady Material Number	B-7546
Material	Tamper-evident Polyester
Resistance Properties	Chemical-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
Core Diameter (mm/cm/m)	76.20 mm
Dimensions (Metric)	25.40 mm W x 12.70 mm H
Height (in/ft/yd)	0.5 in
Horizontal Repeat (mm)	27.31 mm
Maximum Service Temperature °C	100 °C
Minimum Application Temperature °C	4 °C
Minimum Service Temperature °C	-20 °C
Printable Area Dimensions (Metric)	12.7 mm H x 25.4 mm W
Printable Area Width (mm/cm/m)	25.4 mm
Size - Width (mm)	25.40 mm
Thickness (mm/cm/m)	0.080 mm
Vertical Repeat (mm)	15.24 mm
Width (in/ft/yd)	1 in

Brand Name	Brady®
Color	White
Diagram	Icon 26 (hexagon)
Finish	Gloss
Label/Media Format	Roll
Print Technology	Thermal Transfer
Printer Compatibility	BBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
Quantity per Roll	10000
Recommended Ribbon	IP-R6007; R6007
Shape	Rectangle
Tamper Indication Type	Tamper-evident
Total Quantity	10000
Adhesive Type	Tamper-evident Acrylic
Label Properties	Heat Resistant Labels; Permanent Adhesive Labels; Tamper Evident Labels
Material Properties	Tamper-evident
SAP B-Number	B-7546
Dimensions	0.5 in H x 1 in W
Dimensions 2	0.5 in H x 1 in W
Height (mm/cm/m)	12.70 mm
Label/Tape Size (in/ft/yd)	0.5 in H x 1 in W
Maximum Service Temperature °F	212 °F
Minimum Application Temperature °F	39 °F
Minimum Service Temperature °F	-4 °F
Printable Area Height (mm/cm/m)	12.7 mm
Sign Size-General	0.5 in x 1 in
Thickness (in/ft/yd)	0.0032 in
Vertical Repeat	0.6 in
Web Width (mm/cm/m)	85.09 mm
Width (mm/cm/m)	25.4 mm

Regulatory Information

Contains CA PROP 65 Substance	No - Does not contain
Contains Heavy Metal(s)	Unavailable
EU RoHS Compliance	Pass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet required	No = MSDS/SDS is not required
