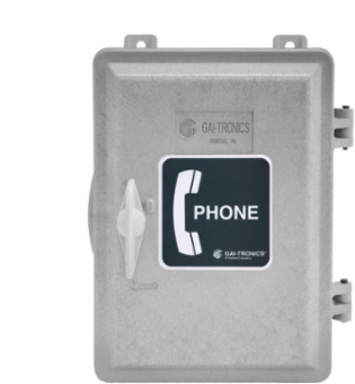

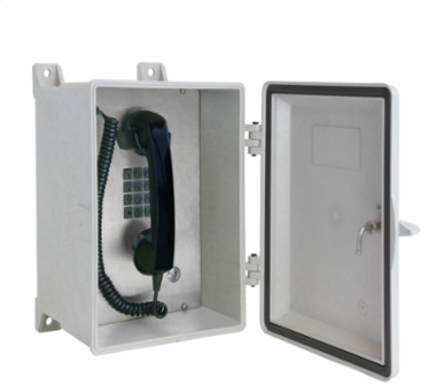

GAI-TRONICS’ VoIP NEMA 4X Rugged Handset Keypad Telephones are designed to provide direct, point-to-point communications between personnel via an existing Internet Protocol LAN. These telephones are intended for connection to a 10/100 BaseT Ethernet SIP network and operate using Power-over-Ethernet (PoE) or an alternative, external power source. The 354-700 series VoIP Handset Telephone offers standard telephone functionality with active dial tone when the handset is removed from its cradle. This rugged telephone is weatherproof rated as NEMA 4X and will withstand a direct spray wash-down or severe weather conditions. The engineered plastic enclosure, conformal-coated printed circuit board, keypad protective boot, and stainless steel panel and hardware provide the maximum resistance to corrosion.
Features
Non-metallic, Corrosion-proof Enclosure
NEMA 4X Weather Rating
SIP Compatible
Power Over Ethernet or Alternative 24/48 V dc Supply
Brushed Stainless Steel Front Panel with Push-button Volume Control
Four Programmable Inputs and Two Contact Closure Outputs
Conformal-coated Printed Circuit Board
Documentation & Downloads
Key Downloads
Specifications
Key Specifications
Color
Gray
Depth
10.5 in
Height
10.5 in
Product Type
Handset Telephones
Storage Temperature Range
-40° C to +70° C
Weight
15.0 lb.
Application
Outdoor & Indoor Use (NEMA 4X)
Nema Rating
4X
Signal
Ethernet
Type
Cord Type: 6-ft. Hytrel Cord;Keypad
Certification
UL/CSA/FCC
Mount location
Surface-Mount
Base Unit of Measure
EA
Connectivity OptionsVoIP
Dimensions14.6 in x 10.9 in x 10.5 in
Length14.6 in
Signal TypeVoIP - SIP
Voltage Rating Description24-48 VDC or PoE
Width10.9 in
Material typeEngrd. Plastic/ Stainless Steel
Operating Temperature-4°F to +131°F / -20°C to +55 °C
Temperature Rating-4°F to +131°F (-20°C to +55°C)
Image Actual Or RepresentativeA
ComplianceFCC CRF 47 Part 15
Weather RatingType 4X
Certifications
Certified Listed
UL/CSA/FCC
