Weidmuller 1064780000 WAH 185/300 BL
- MPN: 1064780000
- PPN: WDM-1064780000
CAD
$8.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

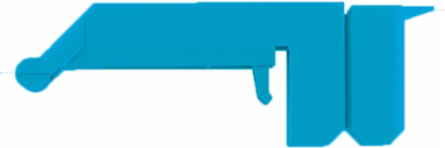

Bolt-type screw terminals, Hood, blue, 54 mm
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 54 mm |
|---|---|
| Height | 139 mm |
| Depth | 43.9 mm |
| Net weight | 25.2 g |
| Width (inches) | 2.126 inch |
|---|---|
| Height (inches) | 5.472 inch |
| Depth (inches) | 1.728 inch |
Dimensions
| Pitch in mm (P) | 55 mm |
|---|
Additional Technical Data
| Explosion-tested version | No |
|---|
| Type of fixing | Snap-on |
|---|
Material Data
| Material | Polyamide 66 |
|---|---|
| UL 94 flammability rating | V-2 |
| Colour | blue |
|---|
Classifications
| ETIM 6.0 | EC002848 |
|---|---|
| eClass 9.0 | 27-14-11-92 |
| eClass 10.0 | 27-14-11-92 |
| ETIM 7.0 | EC002848 |
|---|---|
| eClass 9.1 | 27-14-11-92 |
| UNSPSC | 30-21-18-27 |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 100 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -50 °C |
