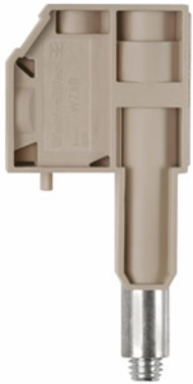

Weidmuller 1964830000 WZAD 70N
- MPN: 1964830000
- PPN: WDM-1964830000
CAD
$7.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
W-Series, Additional connection
Documentation & Downloads
Specifications
Approvals
| Approvals | CSA, cURus |
|---|---|
| UL File Number Search | E60693 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 12.5 mm |
|---|---|
| Height | 30.5 mm |
| Depth | 63 mm |
| Net weight | 26 g |
| Width (inches) | 0.492 inch |
|---|---|
| Height (inches) | 1.201 inch |
| Depth (inches) | 2.48 inch |
Csa Rating Data
| Certificate No. (CSA) | 200039-1057876 |
|---|---|
| Current size C (CSA) | 50 A |
| Voltage size C (CSA) | 600 V |
| Wire cross section min. (CSA) | 24 AWG |
| Current size B (CSA) | 50 A |
|---|---|
| Voltage size B (CSA) | 600 V |
| Wire cross section max. (CSA) | 8 AWG |
Additional Technical Data
| Installation advice | Feed-through (bushing), Direct mounting |
|---|
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | dark beige |
|---|
Classifications
| ETIM 6.0 | EC002848 |
|---|---|
| eClass 9.0 | 27-14-11-92 |
| eClass 10.0 | 27-14-11-92 |
| ETIM 7.0 | EC002848 |
|---|---|
| eClass 9.1 | 27-14-11-92 |
| UNSPSC | 30-21-18-11 |
System Specifications
| Version | Additional connection |
|---|---|
| Number of levels | 1 |
| End cover plate required | No |
|---|---|
| Number of clamping points per level | 1 |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 120 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -50 °C |
Rating Data
| Rated cross-section | 6 mm² |
|---|---|
| Rated current | 41 A |
| Standards | IEC 60947-7-1 |
| Power loss in accordance with IEC 60947-7-x | 1.31 W |
| Pollution severity | 3 |
| Rated voltage | 800 V |
|---|---|
| Current at maximum wires | 41 A |
| Volume resistance according to IEC 60947-7-x | 0.78 mΩ |
| Rated impulse withstand voltage | 8 kV |
Conductors For Clamping (Rated Connection)
| Clamping range, max. | 10 mm² |
|---|---|
| Connection cross-section, stranded, max. | 6 mm² |
| Connection direction | on side |
| Number of connections | 1 |
| Wire connection cross section, finely stranded, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.3 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.3 mm² |
| Wire connection cross-section, solid core, max. | 10 mm² |
| Clamping range, min. | 0.3 mm² |
|---|---|
| Connection cross-section, stranded, min. | 0.3 mm² |
| Gauge to IEC 60947-1 | A5 |
| Type of connection | Screw connection |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 6 mm² |
| Wire connection cross-section, finely stranded, min. | 0.3 mm² |
| Wire connection cross-section, solid core, min. | 0.3 mm² |
Ul Rating Data
| Certificate No. (cURus) | E60693 |
|---|---|
| Conductor size Factory wiring min. (cURus) | 24 AWG |
| Conductor size Field wiring min. (cURus) | 24 AWG |
| Current size C (cURus) | 50 A |
| Voltage size C (cURus) | 600 V |
| Conductor size Factory wiring max. (cURus) | 8 AWG |
|---|---|
| Conductor size Field wiring max. (cURus) | 8 AWG |
| Current size B (cURus) | 50 A |
| Voltage size B (cURus) | 600 V |
