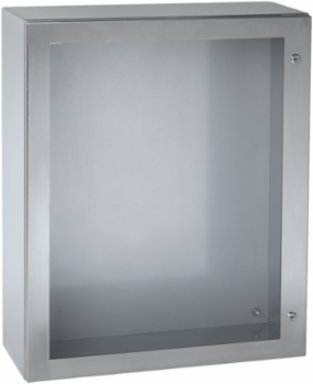

Schneider Electric NSYS3X5420T Spacial S3X Wall Mounted Enclosure, 500x400x200mm, IP66, Stainless Steel 304L
- MPN: NSYS3X5420T
- PPN: SCH-NSYS3X5420T
CAD
$1197.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Crafted for rigorous environments, the Schneider Electric NSYS3X5420T Spacial S3X Wall Mounted Enclosure is an optimal solution for safeguarding sensitive IT equipment and control systems. With its robust dimensions of 500x400x200mm, this enclosure is designed to withstand challenging conditions, featuring an IP66 rating that ensures it remains impervious to dust and water. Made from durable stainless steel 304L, it not only offers excellent protection but also guarantees longevity and resistance to corrosion, making it an ideal choice for automation, data communication, and other industrial applications. This enclosure is essential for any setup requiring reliable and secure housing for critical components.
Documentation & Downloads
Specifications
Additional
- IP Degree of Protection
- IP66 IEC 60529
- Product Certifications
- CAN/CSA 22 UL 508 type A
- Warranty
- 18 months
- Enclosure Nominal Height
- 500 mm (19.69 in.)
- Enclosure Nominal Depth
- 200 mm (7.87 in.)
- Door Type
- glazed
- Lock Type
- 2 points lock, 3 mm double-bar
- Installation Accessory Type
- wall-mounting
- Body Type
- single piece body, cross-shaped structure, gutter shaped front rail
- Type Of Gland Plate
- without gland plate
- Environmental Characteristic
- corrosive, specific hygiene
- Net Weight
- 7.842 kg (17.29 lb)
- Mercury Free
- Yes
- Reach Regulation
- Contains substances of very high concern above threshold
- Environmental Disclosure
- ENVPEP2109018EN
- Product Name
- Spacial S3X
IK Degree of ProtectionIK08 IEC 62262
StandardsIEC 62208
Materialbody and door stainless steel 304L, lock zamak chromium plated, hinge stainless steel, door Securit glass
Enclosure Nominal Width400 mm (15.75 in.)
Number of Doors1 front face
Door Opening Sidereversible 120
Surface Finishbody and door Scotch-Brite brushed, lock chromium plated
Device Applicationmulti-purpose
Removable Partsdoor by hinges
Mounting Plate Descriptionwithout mounting plate
Country of OriginBG
RoHS Exemption InformationYes
China RoHS RegulationProduct out of China RoHS scope
EU RoHS DirectivePro-active compliance, product out of EU RoHS legal scope
RangeSpacial
