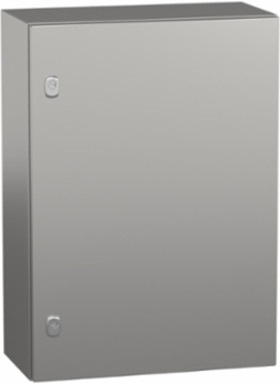

Schneider Electric NSYS3X7525 Spacial S3X Wall Mounted Enclosure, 700x500x250mm, IP66, Stainless Steel 304L
- MPN: NSYS3X7525
- PPN: SCH-NSYS3X7525
CAD
$1509.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Spacial S3X compact steel enclosure with plain front door. 700 x 500 x 250 mm. Multi-purpose. Installation in wall-mounting. Gutter shaped front rail, single piece body with cross shaped structure. Without mounting plate. Handle double bar 3mm. Body and door stainless steel 304L. Protection IP 55, IK10. Enclosure Scotch-Brite® brushed finish.
Documentation & Downloads
Specifications
Key Specifications
- Installation Accessory Type
- wall-mounting
- Product Name
- Spacial S3X
- Enclosure Nominal Height
- 700 mm
- Enclosure Nominal Depth
- 250 mm
- Enclosure Nominal Width
- 500 mm
Product Or Component Typecompact enclosure
Device Composition1 body || 1 door || 2 lock door || 2 perforated vertical profile drilled door
RangeSpacial
Device Applicationmulti-purpose
Complementary
- Accessibility For Operation
- front
- Type Of Gland Plate
- without gland plate
- Lock Type
- 2 points lock, 3 mm double-bar
- Door Opening Side
- reversible 120 °)
- Material
- body and door stainless steel 304L || lock zamak || hinge stainless steel
- Door Type
- plain
Removable Partsdoor by hinges
Body Typesingle piece body, cross-shaped structure || gutter shaped front rail
Net Weight17.36 kg
Number Of Doorsfront face 1
Surface Finishbody and door Scotch-Brite® brushed || lock chromium plated
Mounting Plate Descriptionwithout mounting plate
Environment
- Product Certifications
- CAN/CSA 22 || UL 508 type A
- Standards
- IEC 62208
- Ip Degree Of Protection
- IP66 IEC 60529
Ik Degree Of ProtectionIK10 IEC 62262
Environmental Characteristicspecific hygiene || corrosive
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2109018EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
