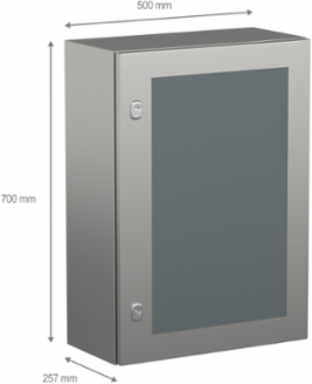

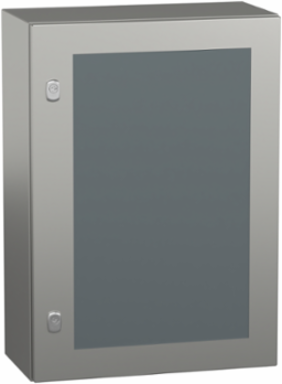

Schneider Electric NSYS3X7525T Spacial S3X Wall Mounted Enclosure, 700x500x250mm, Stainless Steel 304L, IP66
- MPN: NSYS3X7525T
- PPN: SCH-NSYS3X7525T
CAD
$1943.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
SPACIAL S3X Scotch Brite compact enclosure. H is700xW is500xD is250 mm. For corrosive/specific hygiene. No mounting plate included. 3 mm double-bar lock. Glazed door. Wall mounting installation. Gutter-shaped front rail, single piece body. Stainless steel 304L body, Scotch-Brite brushed surface. Security glass. Protection IP 66, IK08, Grey RAL 7035. Certifications is CAN/CSA 22, UL 508 type A.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Bulgaria, Brazil, France, United States
Physical Attributes
- Enclosure Nominal Height
- 700 mm
Enclosure Nominal Width500 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Body Type
- single piece body, cross-shaped structure, gutter shaped front rail
- Door Type
- Glass, Glass
- Material
- body and door stainless steel 304L, lock zamak, hinge stainless steel, door Securit glass
- Certificate Agency
- CAN/CSA 22, UL 508 type A
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 44 kg CO2 eq., 43.565018909818875
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 169 kg CO2 eq., 169.36720079138777
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 3
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Door Opening Side
- reversible 120 °)
- Lock Type
- 2 points lock, 3 mm double-bar
- Number Of Doors
- front face 1
- Product Name
- Spacial S3X
- Range
- Spacial
- Returnability
- No
- Sustainable Packaging
- No
- Type Of Gland Plate
- without gland plate
- Pep Code
- ENVPEP2109018EN
- Pep Verification Date
- 2024-11-13
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Package Weight(Lbs)
- 16.596 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Device Composition1 body, 1 lock door, 1 door
Environmental Characteristicspecific hygiene, corrosive
Surface Finishbody and door Scotch-Brite® brushed, lock chromium plated
Carbon Footprint Of The Distribution Phase [A4]32.94841525724808, 33 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.8237925402813324, 0.8 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2025-07-10
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionStandard
Device Applicationmulti-purpose
Energy Efficiency OptimizedFalse
Mounting Plate Descriptionwithout mounting plate
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typecompact enclosure
Removable Partsdoor by hinges
Software Versionv6.2.3
Total Lifecycle Carbon Footprint247 kg CO2 eq.
Locking Description2 points lock, 3 mm double-bar
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure having the following dimensions H x L x D, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Bulgaria, BG
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 246.7044274987361
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2109018EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2109018EN
Ip Degree Of ProtectionIP66 IEC 60529
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-11-13
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- compact enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
