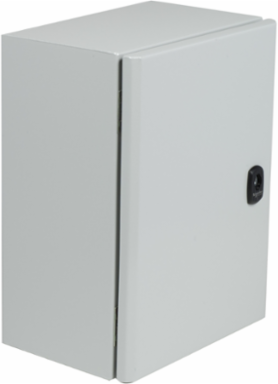

Schneider Electric NSYS3DC10825 Spacial S3DC Wall-Mounted Steel Enclosure, 1000x800x250mm, IP66, IK10
- MPN: NSYS3DC10825
- PPN: SCH-NSYS3DC10825
CAD
$742.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric NSYS3DC10825 Spacial Steel Enclosure is engineered for robust performance in demanding environments, measuring 1000x800x250mm. Featuring an IP66 rating, this wall-mounted enclosure ensures exceptional protection against dust and water, making it suitable for various outdoor applications. With an IK10 impact resistance rating, it is designed to withstand mechanical stress, ensuring the safety of the enclosed electrical components. Its durable steel construction not only provides a secure housing solution but also facilitates easy installation and maintenance, making it an ideal choice for professionals looking for reliability in electrical enclosures.
Documentation & Downloads
Specifications
Additional
- Material
- Steel
- IK Degree of Protection
- IK10 IEC 62262
- Enclosure Nominal Height
- 1000 mm (39.37 in)
- Enclosure Nominal Depth
- 250 mm (9.84 in)
- Door Opening Angle
- 120° reversible
- Lock Type
- 3 points lock, screwdriver insert
- Device Composition
- 1 body, 1 door, 1 lock
- Mounting Plate Description
- Without mounting plate
- Installation Accessory Type
- Wall-mounting
- Product Certifications
- UL
- Net Weight
- 32.6 kg (71.87 lb)
- Accessibility for Operation
- Front
- Removable Parts
- Door by hinges
- Mercury Free
- Yes
- RoHS Exemption Information
- Yes
- China RoHS Regulation
- Product out of China RoHS scope, substance declaration info
- Environmental Disclosure
- ENVPEP100104EN
- Product or Component Type
- Compact enclosure
- Product Name
- Spacial S3DC
IP Degree of ProtectionIP66 IEC 60529
NEMA Degree of ProtectionNEMA 4X/13
Enclosure Nominal Width800 mm (31.50 in)
Number of Doors1 front face
Door TypePlain (solid)
Surface FinishEpoxy-polyester powder
Body TypeGutter-shaped front profile, double sheet thickness, single piece body
Type of Gland PlateWithout gland plate
StandardsIEC 62208
ColorGrey RAL 7035
Device ApplicationMulti-purpose
Variant ParticularityGutter-shaped front profile, double sheet thickness, single piece body
RangeSpacial
Reach RegulationContains SVHC above threshold
EU RoHS DirectivePro-active compliance, product out of EU RoHS legal scope
Warranty18 months
Sustainable Offer StatusGreen Premium product
Circularity ProfileN/A
Country of OriginSpain
