Schneider Electric NSYS3DC5425 Wall Mounted Steel Enclosure 500x400x250mm IP66 IK10
- MPN: NSYS3DC5425
- PPN: SCH-NSYS3DC5425
CAD
$299.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

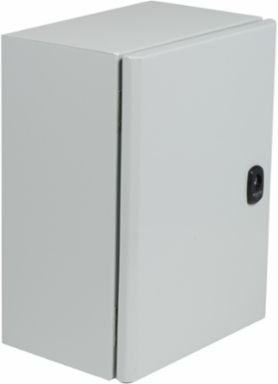

Crafted by Schneider Electric, this wall-mounted steel enclosure is designed to provide reliable protection for your electrical components. With an impressive IP66 rating, it ensures superior resistance against dust and water, making it suitable for various challenging environments. Additionally, the IK10 classification signifies exceptional impact resistance, safeguarding your equipment from potential damage. Measuring 500x400x250mm, this enclosure combines durability with practical dimensions, making it a perfect choice for effective electrical management in both commercial and industrial settings.
Documentation & Downloads
Specifications
Additional
- IP Degree of Protection
- IP66 IEC 60529
- NEMA Degree of Protection
- NEMA 4X/13
- Enclosure Nominal Width
- 400 mm (15.75 in.)
- Net Weight
- 9.75 kg (21.5 lb)
- Door Opening Side
- Reversible 120°
- Enclosure Type
- Wall Mounted
- Surface Finish
- Epoxy-polyester powder
- Lock Type
- Screw driver insert lock
- Mounting Plate
- Without mounting plate
- Installation Accessory Type
- Wall-mounting
- Body Type
- Gutter-shaped front profile double sheet thickness, single piece body
- Standards
- IEC 62208
- China RoHS Compliance
- Product out of China RoHS scope
- RoHS Compliance
- Pro-active
- Country of Origin
- France
IK Degree of ProtectionIK10 IEC 62262
Enclosure Nominal Height500 mm (19.69 in.)
Enclosure Nominal Depth250 mm (9.84 in.)
Number of Doors1 front face
Accessibility for OperationFront
MaterialSteel
Door TypePlain solid
Removable PartsDoor by hinges
Gland PlateWithout gland plate
Device Composition1 body, 1 door, 1 lock
ColorGray RAL 7035
Product CertificationsUL
Mercury FreeYes
Warranty18 months
