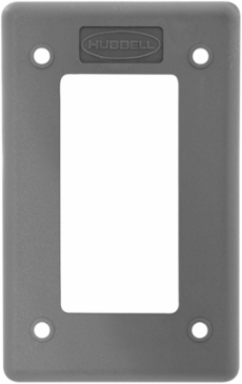

Hubbell Wiring Device-Kellems HBLP26FS Gray 1-Gang GFCI Cover Plate for Portable Outlet Box
- MPN: HBLP26FS
- UPC: 783585318165
- PPN: HBL-HBLP26FS
- UNSPSC: 39121304
CAD
$16.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Wallplates and Boxes, Box Covers, 1-Gang, 1) GFCI Opening, For Portable Outlet Box, Gray
Features
- Impact resistant Valox® cover plate
- For Portable Outlet Box
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Industry Standard(s)
- C22.2 No. 18 and C22.2 No. 94 Enclosures Types 1, 3R and C22.2 No. 0.4;UL 514C, UL467 and UL50 Enclosures Types 1, 3R
- Standards - RoHS Compliance Status
- CM
- Color
- Gray
- Shape
- Rectangle
- Standard
- C22.2 No. 18 and C22.2 No. 94 Enclosures Types 1, 3R and C22.2 No. 0.4;UL 514C, UL467 and UL50 Enclosures Types 1, 3R
- Weight
- 0.05 lb.
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Display Size
- 1-Gang
- Style
- Non-Metallic Fs Cover Plate
- Description - Invoice
- POB COVER PLATE, GFCI, GRAY
- Harmonization Code
- 3925900000
- MSDS Flag
- No
- Cord Range
- .38" - .75"
- Construction
- Molded
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.250 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25 EA
- Case Weight
- 4.086 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 42.700 in
- Pallet Weight
- 856.800 lb.
- NAICS Code
- 3359326105
Width2.800 in
PerformanceEnvironmental - Flammability - UL 94V-0, 94-5VA classification;Environmental - Impact and Crush Resistance - In accordance with UL 514C, UL50, C22.2 No. 18 and C22.2 No. 94.;Environmental - Moisture Resistance - Wet and damp locations, Enclosure Type 3R when used with weatherproof cover plates.Dry, indoors locations, Enclosure Type 1 with all other cover plates;Environmental - Operating Temperature - 80°C maximum;-35°C minimum;Environmental - UV Resistance - All materials are UV stabilized
Application1) Decorator Opening
Number of Outlet1-Device
Special FeaturesFor Portable Outlet Box
TypeCover Plate
General Literature Asset 1 Display TextSafety Product Guide
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Number Of Outlets1-Device
Class CodeA24
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA24A290
Material - Mounting HardwareBox Mount- Mounting Screws
MaterialThermoplastic
BOX SIZE3.200x7.600x5.200 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585318165
Case - Total Units100 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585318164
Pallet Length48.000 in
Pallet Width40.000 in
