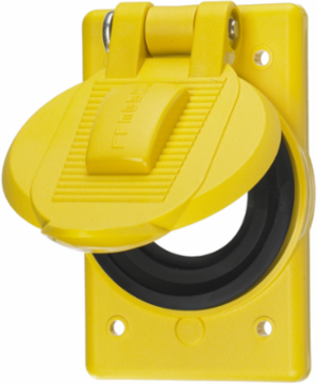

Hubbell Wiring Device-Kellems HBL74CM25WOA Weatherproof Cover Plate 1-Gang 1.60 Inch Opening Polycarbonate Yellow
- MPN: HBL74CM25WOA
- UPC: 783585809427
- PPN: HBL-HBL74CM25WOA
- UNSPSC: 39121304
CAD
$144.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Wallplates and Boxes, Weatherproof Covers, 1-Gang, 1) 1.60" Opening, Standard Size, Yellow Polycarbonate
Features
- Meets the most stringent requirements of UL’s three listing categories for weatherproof plates
- Yellow spring-loaded lift cover for single receptacles with face dia. 1.60" (40.6)
- Yellow thermoplastic, for FS/FD box mounting, corrosion resistant
- Weatherproof in Open Position with Device Mated
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL74CM25WOA AutoCAD Drawing
- General Literature Asset 2 Display Text
- Food Processing Guide
- Country of Origin
- United States
- Height
- 2.84 in
- Length
- 4.56 in
- Application
- 1.60" Opening
- Number of Outlet
- 1-Device
- Size
- 4.56 in x 1.09 in x 2.84 in
- Standard
- UL Listed
- Weight
- 0.3 lb.
- Display Size
- 1-Gang
- Style
- For switches/receptacles with Face Diameter 1.36–1.58 in.
- Description - Invoice
- W/PROOF RCPT PLATE, POLYCARB , 1.75", YL
- Harmonization Code
- 3925909900
- MSDS Flag
- No
- Sub Class Code
- A24A290
- Construction
- Molded
- Number of Gang(s)
- 1-Gang
- BOX SIZE
- 6.100x14.000x9.450 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585809427
- Case Weight
- 4.370 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 44.100 in
- Pallet Weight
- 373.100 lb.
- NAICS Code
- 3359326105
General Literature Asset 1 Display TextSafety Product Guide
General Literature Asset 3 Display TextHubbell Marine Full Line Catalog
Dimensions4.56 in x 1.09 in x 2.84 in
Industry Standard(s)UL Listed
Standards - RoHS Compliance StatusCM
ColorYellow
ShapeRectangle
Special FeaturesWeatherproof in Open Position with Device Mated
TypeCovers
Width1.09 in
Number Of Outlets1-Device
Class CodeA24
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number74CM25WOA
Material - Mounting HardwareVertical FS/FD Mount- Mounting Screws
MaterialPolycarbonate
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.750 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585809426
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
