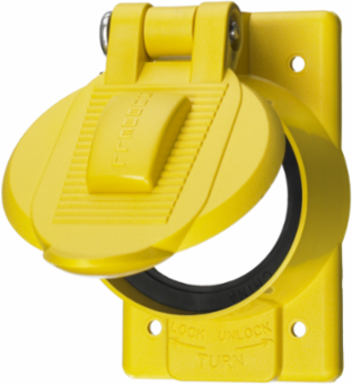

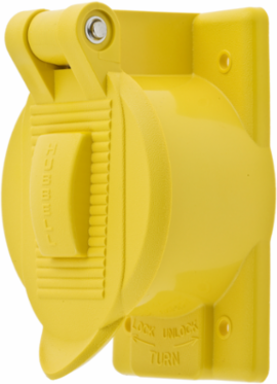

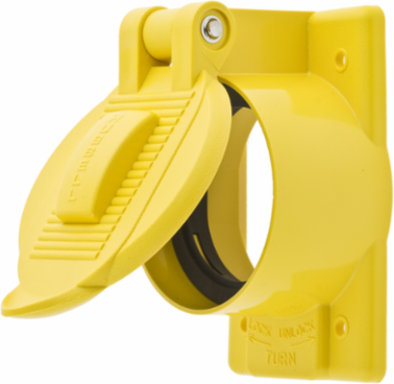

Hubbell Wiring Device-Kellems HBL77CM74WO Weatherproof Cover 1-Gang 50A Twist-Lock Yellow Polycarbonate 4.56 Inch x 2.43 Inch x 3.28 Inch
Hubbell Wiring Device-Kellems HBL77CM74WO Weatherproof Cover 1-Gang 50A Twist-Lock Yellow Polycarbonate 4.56 Inch x 2.43 Inch x 3.28 Inch
- MPN: HBL77CM74WO
- UPC: 783585809472
- PPN: HBL-HBL77CM74WO
- UNSPSC: 39121304
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$138.77/ EA
Description
Wallplates and Boxes, Weatherproof Covers, 1-Gang, 1) 50A Twist-Lock® Opening, Standard Size, Yellow Polycarbonate
Features
- Corrosion resistant, yellow thermoplastic
- Weatherproof in Open Position with Device Mated
Specifications
Specifications
- Engineering Drawing 1 Display Text
- HBL77CM74WO AutoCAD Drawing
- General Literature Asset 2 Display Text
- 50 Amp Twist-Lock® Devices
- Country of Origin
- United States
- Height
- 3.28 in
- Length
- 4.56 in
- Application
- All 50A Twist-Lock®
- Shape
- Rectangle
- Special Features
- Weatherproof in Open Position with Device Mated
- Type
- Covers
- Width
- 2.43 in
- Number Of Outlets
- 1-Device
- Style
- For 50A Twist-Lock® Single Receptacle
- Description - Invoice
- W/PROOF COV, FOR 50A LKG, YL
- Harmonization Code
- 3925909900
- MSDS Flag
- No
- Sub Class Code
- A24A290
- Number of Gang(s)
- 1-Gang
- BOX SIZE
- 9.400x16.900x9.900 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585809472
- Case Weight
- 9.474 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 47.000 in
- Pallet Weight
- 288.750 lb.
General Literature Asset 1 Display TextHubbell Marine Full Line Catalog
General Literature Asset 3 Display TextWiring Device Solutions for Strategic Manufacturing Facilities
Dimensions4.56 in x 2.43 in x 3.28 in
Industry Standard(s)UL Listed - Canadian and U.S.
Standards - RoHS Compliance StatusCM
Number of Outlet1-Device
Size4.56 in x 2.43 in x 3.28 in
StandardUL Listed - Canadian and U.S.
Weight0.40 lb.
Dielectric StrengthWithstands 2,000V minimum
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Class CodeA24
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number77CM74WO
Material - Mounting HardwareVertical FS/FD Mount- Mounting Screws
Base Unit of MeasureEA
Carton - Gross Weight per Pack4.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585809471
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
