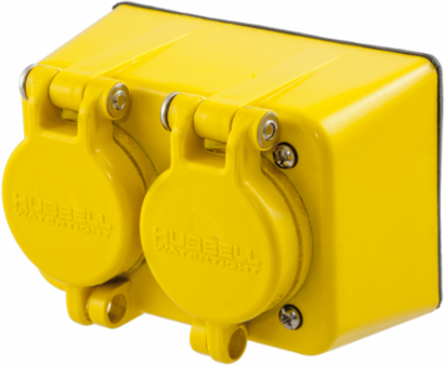

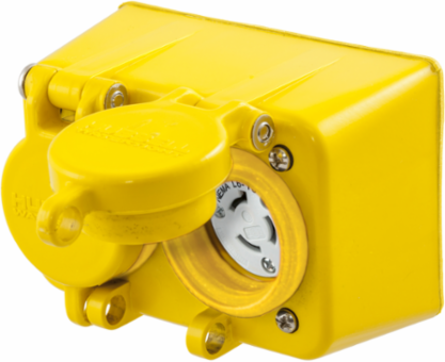

Hubbell Wiring Device-Kellems HBL65W49D Watertight Duplex Receptacle, 15A 250V, NEMA L6-15R, Thermoplastic Elastomer, Yellow
- MPN: HBL65W49D
- UPC: 783585528755
- PPN: HBL-HBL65W49D
- UNSPSC: 39121406
CAD
$177.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Watertight Devices, Twist-Lock® Duplex Receptacle with Lift Cover, 15A, 250VAC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L6-15R, Yellow.
Features
- Impact resistant PBT lid, cover plate, and receptacle body
- Thermoplastic elastomer seal
- Stainless steel hardware and corrosion-resistant connection points
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- Number of Poles
- 2-Pole
- NEMA Rating
- L6-15R
- Dielectric Voltage
- 2500 V AC
- Operating Temperature Range
- -40°C to +60°C continuous
- Wire Size
- #18 AWG to #10 AWG
- Seal Type
- Thermoplastic Elastomer
- Contact Material
- Nickel Plated Brass
- Contact Carrier Material
- White Nylon
- Core Material
- White Nylon
- Moisture Resistance Rating
- IP69K, UL Listed 4, 4X, 12, 6, 6P
- Industry Standard(s)
- Meets NEMA WD-1, WD-6 and ANSI Standards
- Country of Origin
- CN
Voltage250 V AC
Number of Wires3-Wire
TypeDuplex Receptacle
Temperature Rise30°C max
Width5.048 in
MaterialThermoplastic Elastomer, PBT
Hardware MaterialStainless Steel
Body MaterialPBT
Terminal Retainer MaterialClear Polycarbonate
Terminal Screws MaterialNickel Plated Brass
ComplianceUL Listed, CSA Certified
EU RoHS IndicatorContact Manufacturer
ColorYellow
