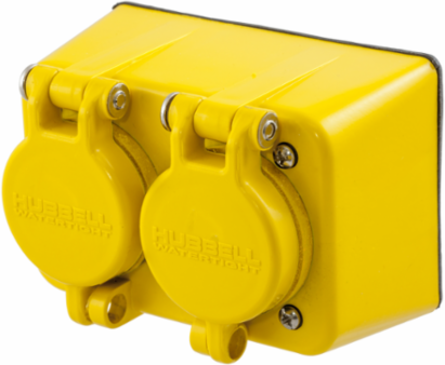

Hubbell Wiring Device-Kellems HBL65W47D Watertight Duplex Receptacle, 15A, 125V, NEMA L5-15R, Yellow
- MPN: HBL65W47D
- UPC: 783585528748
- PPN: HBL-HBL65W47D
- UNSPSC: 39121406
CAD
$177.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Watertight Devices, Twist-Lock® Duplex Receptacle with Lift Cover, 15A, 125VAC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L5-15R, Yellow.
Features
- Impact resistant PBT lid, cover plate, and receptacle body
- Thermoplastic elastomer seal
- Stainless steel hardware and corrosion-resistant connection points
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- Poles
- 2-Pole
- NEMA Rating
- L5-15R
- Wire Size
- #18 AWG to #10 AWG
- Color
- Yellow
- Seal Material
- Thermoplastic Elastomer
- Contact Carrier Material
- White Nylon
- Contacts Material
- Nickel Plated Brass
- Current Interrupting
- Rated per UL498
- Temperature Rise
- 30°C max
- Moisture Resistance
- UL Listed 4, 4X, 12, 6, 6P
- Certifications
- UL Listed, CSA Certified to Type 4, 4X, 12, 6, 6P
- Standards - RoHS Compliance Status
- CM
- Country of Origin
- PR
Voltage125 V AC
Number of Wires3-Wire
Device TypeDuplex Receptacle
Width5.1 in
Body MaterialPBT
Hardware MaterialStainless Steel
Terminal Retainer MaterialClear Polycarbonate
Terminal Screws MaterialNickel Plated Brass
Dielectric Voltage2500 V AC
Operating Temperature-40°C to +60°C continuous
UV ResistanceUV stabilized
IP RatingIP69K
Industry Standard(s)Meets NEMA WD-1, WD-6, ANSI; IP69K In Use
