Hubbell Wiring Device-Kellems HBL65W49 Watertight Twist-Lock Receptacle NEMA L6-15R 15A 250V 3-Wire 4.56 Inch x 3.10 Inch x 2.66 Inch
- MPN: HBL65W49
- UPC: 783585456621
- PPN: HBL-HBL65W49
- UNSPSC: 39121406
CAD
$159.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

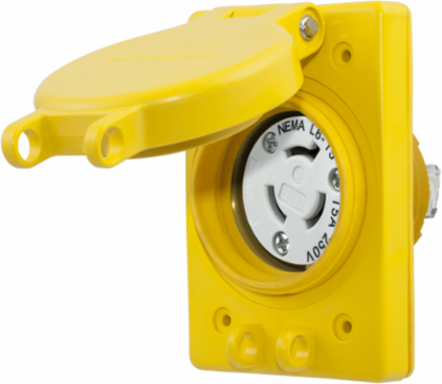

Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 15A, 250VAC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L6-15R, Yellow.
Features
- Impact resistant PBT lid, cover plate, and receptacle body
- Thermoplastic elastomer seal
- Stainless steel hardware and corrosion-resistant connection points
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 4.56 in x 3.10 in x 2.66 in
- Industry Standard(s)
- IP69K In Use;Meets NEMA WD-1, WD-6 And ANSI Standards
- Performance
- Electrical - Current Interrupting - Rated for current interruption per UL498;Electrical - Dielectric Voltage - 2500V AC;Electrical - Max Working Voltage - As marked;Electrical - Temperature Rise - 30°C max per UL498 at rated current;Environmental - UV resistance - All exposed materials are UV stabilized;Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P;Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous
- Amperage Rating
- 15 A
- NEMA Rating
- L6-15R
- Number of Wires
- 3-Wire
- Standard
- IP69K In Use;Meets NEMA WD-1, WD-6 And ANSI Standards
- Voltage Rating
- 250 V
- Voltage Rating Description
- 250 V
- Engineering Drawing 1 Display Text
- HBL65W49 AutoCAD Drawing
- General Literature Asset 2 Display Text
- Wiring Device Solutions for Strategic Manufacturing Facilities
- Nema Rating
- L6-15R
- Number Of Wires
- 3-Wire
- Description - Invoice
- WATERTIGHT RECEP ASSY,NEMA L6-15R
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Sub Class Code
- A08A116
- BOX SIZE
- 5.200x11.600x9.100 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585456621
- Case Weight
- 3.200 lb.
Current / Amperage Rating15 A
Height2.66 in
Length4.56 in
Standards - RoHS Compliance StatusCM
ColorYellow
Number of Poles2-Pole
Size4.56 in x 3.10 in x 2.66 in
TypeReceptacle
Wire Size#18 AWG to #10 AWG
Width3.10 in
General Literature Asset 1 Display TextWatertight Wiring Devices
General Literature Asset 3 Display TextPulp & Paper Solutions
Number Of Poles2-Pole
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number65W49H
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.350 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
NAICS Code335931A102
