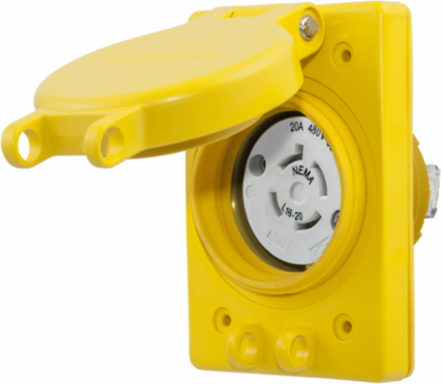

Hubbell Wiring Device-Kellems HBL67W76 Watertight Receptacle NEMA L16-20, 20A, 3 Phase 480VAC, 3 Pole, 4 Wire
Hubbell Wiring Device-Kellems HBL67W76 Watertight Receptacle NEMA L16-20, 20A, 3 Phase 480VAC, 3 Pole, 4 Wire
- MPN: HBL67W76
- UPC: 783585433196
- PPN: HBL-HBL67W76
- UNSPSC: 39121406
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$185.57/ EA
Description
Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 20A, 3 Phase 480VAC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L16-20R, Yellow.
Features
- Impact resistant PBT lid, cover plate, and receptacle body
- Thermoplastic elastomer seal
- Stainless steel hardware and corrosion-resistant connection points
Specifications
- Voltage
- 3 Phase 480 VAC
- Number of Poles
- 3-Pole
- NEMA Rating
- L16-20R
- Size
- 4.56 in x 3.10 in x 2.92 in
- Width
- 3.10 in
- Material
- PBT, Thermoplastic Elastomer, White Nylon, Clear Polycarbonate, Nickel Plated Brass, Stainless Steel
- Temperature Range
- -40°C to +60°C continuous
- Temperature Rise
- 30°C max per UL498
- Compliance
- UL Listed, CSA Certified, RoHS CM
- IP Rating
- IP69K
- Country of Origin
- US
Amperage20 A
Number of Wires4-Wire
Device TypeTwist-Lock Receptacle
Length4.56 in
Height2.92 in
Seal TypeThermoplastic Elastomer
Dielectric Voltage3500V AC
Moisture ResistanceUL Listed 4, 4X, 6, 6P, 12
UV ResistanceUV Stabilized Materials
ColorYellow
Wire Size#18 AWG to #8 AWG
