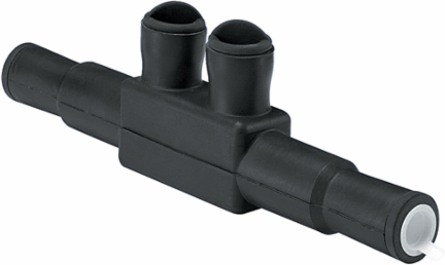

ILSCO USPA-350SS Watertight Underground In-Line Splice, Dual Rated, Direct Bury, Conductor Range 350-10, RUS
- MPN: USPA-350SS
- UPC: 676566793757
- PPN: ILC-USPA-350SS
- UNSPSC: 39121408
CAD
$93.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
UTILCO Underground Splice, Mechanical connection, Dual Rated, Aluminum alloy 6061-T6 material, Copper/Aluminum Primary Conductor 350 kcmil - 10 Str, 2 conductors, EPDM insulation, Drive Type Main 5/16 Internal Hex, Drive Type Tap 5/16 Internal Hex, primary color Black,
Documentation & Downloads
Specifications
Key Specifications
| UPC Code | 67656679375 |
|---|---|
| Dual Rated | TRUE |
| Conductor Size CU (Primary, run, main, line) | 350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str |
| Conductor Size AL (Primary, run, main, line) | 350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str |
| Drive Size Main | 16-May |
| Drive Size Tap | 16-May |
| Wire Binding Screw Size | 11/16/2016 |
| Length (mm) | 230.378 |
| Width (mm) | 31.75 |
| Height (mm) | 73.406 |
| Material | Aluminum alloy 6061-T6 |
| Insulation | EPDM |
| Wire Binding Hardware Finish | Tin |
| Direct Burial | TRUE |
| ANSI Specification | ANSI C119.4 Class A,ANSI C119.1 Class A |
| Connection | Mechanical |
| Contains DE-OX | FALSE |
| Number of Ports Main | 1 |
| Bag Quantity | 1 |
| UNSPSC Code | 39121408 |
|---|---|
| Conductor Range CU Stranded (Primary, run, main, line) | 350 kcmil - 10 Str |
| Conductor Range AL Stranded (Primary, run, main, line) | 350 kcmil - 10 Str |
| Disc Pad Screws | FALSE |
| Drive Type Main | Internal Hex |
| Drive Type Tap | Internal Hex |
| Length (IN) | 9.07 |
| Width (IN) | 1.25 |
| Height (IN) | 2.89 |
| Weight (LB) | 0.45612358 |
| Conductor Material | Copper,Aluminum |
| Wire Binding Hardware Material | Aluminum |
| Color | Black |
| Water tight | TRUE |
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| Conductor Type | Stranded |
| Number of Conductors | 2 |
| Number of Ports Tap | 1 |
