Weidmuller 1072660000 WBB WDK2.5/BL5.08
- MPN: 1072660000
- PPN: WDM-1072660000
CAD
$7.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

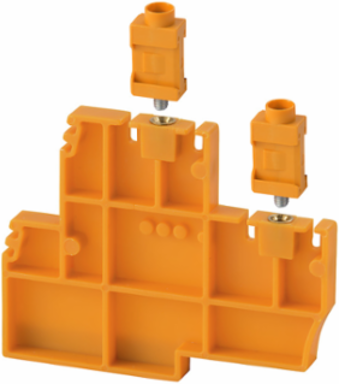

W-Series, Fixing bracket, orange, 5 mm
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 5 mm |
|---|---|
| Height | 58 mm |
| Depth | 45.2 mm |
| Net weight | 8.5 g |
| Width (inches) | 0.197 inch |
|---|---|
| Height (inches) | 2.283 inch |
| Depth (inches) | 1.78 inch |
Additional Technical Data
| Installation advice | Direct mounting |
|---|
| Snap-on | No |
|---|
Material Data
| Material | PA 66 |
|---|---|
| UL 94 flammability rating | V-2 |
| Colour | orange |
|---|
Classifications
| ETIM 6.0 | EC000886 |
|---|---|
| eClass 9.0 | 27-14-11-92 |
| eClass 10.0 | 27-14-11-92 |
| ETIM 7.0 | EC000886 |
|---|---|
| eClass 9.1 | 27-14-11-33 |
| UNSPSC | 30-21-18-27 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
System Specifications
| Version | End and intermediate plate |
|---|
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 100 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -50 °C |
