Weidmuller 1142980000 WBB WMF2.5 BLZ
- MPN: 1142980000
- PPN: WDM-1142980000
CAD
$6.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

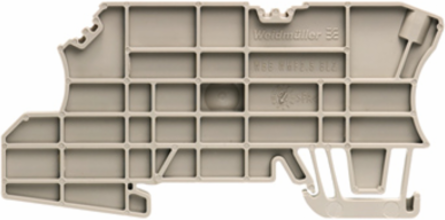

W-Series, Fixing bracket, dark beige, 5.08 mm
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 5.08 mm
- Height
- 88.5 mm
- Depth
- 44.5 mm
- Net weight
- 10.2 g
Width (inches)0.2 inch
Height (inches)3.484 inch
Depth (inches)1.752 inch
Additional Technical Data
- Snap-on
- No
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourdark beige
Classifications
- ETIM 6.0
- EC000886
- eClass 9.0
- 27-14-11-92
- eClass 10.0
- 27-14-11-92
ETIM 7.0EC000886
eClass 9.127-14-11-33
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
System Specifications
- Version
- Mounting block
RailTS 35
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
