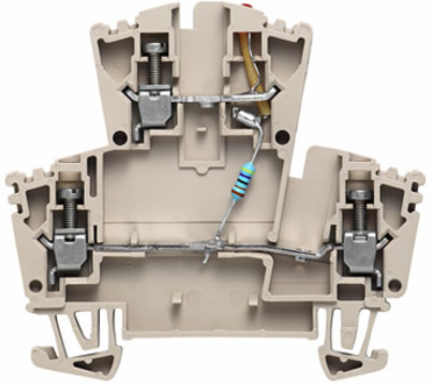

Weidmuller 1023600000 WDK 2.5 LD RT 24VDC +-
Weidmuller 1023600000 WDK 2.5 LD RT 24VDC +-
- MPN: 1023600000
- PPN: WDM-1023600000
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$15.65/ EA
Description
W-Series, Feed-through terminal, Double-tier terminal, Rated cross-section: 2.5 mm², Screw connection
Specifications
Approvals
- Approvals
- CE, EAC
ROHSConform
Display Element
- Current
- 5 mA
- Operating voltage for display, max.
- 24 V
- Type of voltage for indicator
- DC
Indicator elementred
Operating voltage for display, min.24 V
Dimensions And Weights
- Width
- 5.1 mm
- Height
- 69 mm
- Depth
- 62.5 mm
- Depth including DIN rail
- 63 mm
Width (inches)0.201 inch
Height (inches)2.717 inch
Depth (inches)2.461 inch
Net weight11.19 g
Dimensions
- TS 35 offset
- 35.5 mm
Additional Technical Data
- Electronic component
- red LED
- Number of similar terminals
- 1
Explosion-tested versionNo
Type of mountingSnap-on
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourdark beige
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000903
- eClass 9.0
- 27-14-11-27
- eClass 10.0
- 27-14-11-27
ETIM 7.0EC000903
eClass 9.127-14-11-47
UNSPSC30-21-18-11
System Specifications
- Version
- Screw connection, with LED
- Number of potentials
- 1
- Number of clamping points per level
- 2
- Levels cross-connected internally
- Yes
- Rail
- TS 35
- PE function
- No
End cover plate requiredYes
Number of levels2
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Rating Data
- Rated cross-section
- 2.5 mm²
- Current at maximum wires
- 10 A
- Volume resistance according to IEC 60947-7-x
- 1.33 mΩ
- Rated impulse withstand voltage
- 0.8 kV
Rated voltage24 V
StandardsIEC 60947-7-1
Power loss in accordance with IEC 60947-7-x0.77 W
Pollution severity3
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, min.
- 0.13 mm²
- Connection cross-section, stranded, max.
- 4 mm²
- Connection direction
- on side
- Number of connections
- 3
- Tightening torque, max.
- 0.6 Nm
- Type of connection
- Screw connection
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Clamping range, max.4 mm²
Clamping screwM 2.5
Connection cross-section, stranded, min.1.5 mm²
Gauge to IEC 60947-1A3
Stripping length10 mm
Tightening torque, min.0.4 Nm
Wire connection cross section, finely stranded, max.4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.0.5 mm²
Wire connection cross-section, solid core, max.4 mm²
