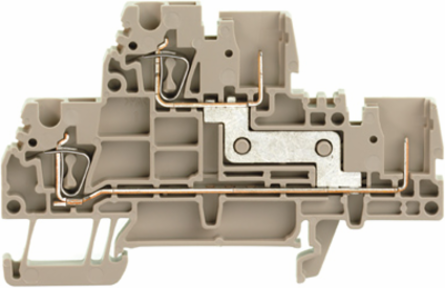

Weidmuller 1084770000 ZDT 2.5/2 V
- MPN: 1084770000
- PPN: WDM-1084770000
CAD
$8.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Z-series, Double-tier terminal, Rated cross-section: 2.5 mm², Tension-clamp connection
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 5.1 mm |
|---|---|
| Height | 80.5 mm |
| Depth | 52 mm |
| Depth including DIN rail | 52.5 mm |
| Width (inches) | 0.201 inch |
|---|---|
| Height (inches) | 3.169 inch |
| Depth (inches) | 2.047 inch |
| Net weight | 13.88 g |
Additional Technical Data
| Open sides | right |
|---|
| Type of mounting | Snap-on |
|---|
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | dark beige |
|---|
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC000897 |
|---|---|
| eClass 9.0 | 27-14-11-20 |
| eClass 10.0 | 27-14-11-20 |
| ETIM 7.0 | EC000897 |
|---|---|
| eClass 9.1 | 27-14-11-20 |
System Specifications
| Version | 2 tension-clamp connections - 2 plug-in connections, Vertically cross-connected, pluggable |
|---|---|
| Number of levels | 2 |
| Levels cross-connected internally | Yes |
| Rail | TS 35 |
| End cover plate required | Yes |
|---|---|
| Number of clamping points per level | 4 |
| PE connection | No |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 120 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -50 °C |
Conductors For Clamping (Additional Connection)
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 2.5 mm² |
|---|
Rating Data
| Rated cross-section | 2.5 mm² |
|---|---|
| Max. voltage of clamp support & pluggable system | 690 V |
| Current at maximum wires | 24 A |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Rated voltage | 500 V |
|---|---|
| Rated current | 24 A |
| Standards | IEC 61984, In accordance with IEC 60947-7-1 |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Pollution severity | 3 |
Conductors For Clamping (Rated Connection)
| Blade size | 0.6 x 3.5 mm |
|---|---|
| Clamping range, min. | 0.13 mm² |
| Gauge to IEC 60947-1 | A2 |
| Stripping length | 10 mm |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Clamping range, max. | 4 mm² |
|---|---|
| Connection direction | top |
| Number of connections | 4 |
| Type of connection | Tension-clamp connection |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
