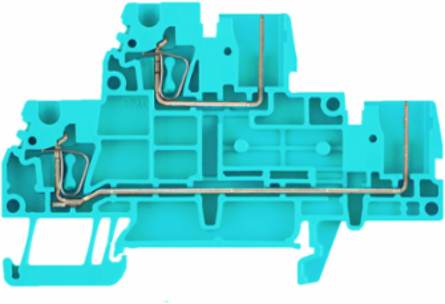

Weidmuller 1348970000 ZDT 2.5/2 BL
- MPN: 1348970000
- PPN: WDM-1348970000
CAD
$5.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Z-series, Double-tier terminal, Rated cross-section: 2.5 mm², Tension-clamp connection
Documentation & Downloads
Specifications
Approvals
- Approvals
- CCSAUS, cURus
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 5.1 mm
- Height
- 80.5 mm
- Depth
- 52 mm
- Depth including DIN rail
- 52.5 mm
Width (inches)0.201 inch
Height (inches)3.169 inch
Depth (inches)2.047 inch
Net weight9.67 g
Csa Rating Data
- Certificate number (cCSAus)
- 154685-1460993
- Current size D (cCSAus)
- 5 A
- Voltage size D (cCSAus)
- 600 V
- Wire cross section min. (cCSAusX)
- 26 AWG
Current size C (cCSAus)20 A
Voltage size C (cCSAus)300 V
Wire cross section max. (cCSAusX)12 AWG
Additional Technical Data
- Open sides
- right
Type of mountingSnap-on
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourblue
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000897
- eClass 9.0
- 27-14-11-20
- eClass 10.0
- 27-14-11-20
ETIM 7.0EC000897
eClass 9.127-14-11-20
UNSPSC30-21-18-01
System Specifications
- Version
- 2 tension-clamp connections - 2 plug-in connections, pluggable
- Number of levels
- 2
- Levels cross-connected internally
- No
- Rail
- TS 35
End cover plate requiredYes
Number of clamping points per level4
PE connectionNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Conductors For Clamping (Additional Connection)
- Connection direction
- top
Connection type, additional connectionPlug-in connection
Rating Data
- Rated cross-section
- 2.5 mm²
- Max. voltage of clamp support & pluggable system
- 690 V
- Current at maximum wires
- 24 A
- Volume resistance according to IEC 60947-7-x
- 1.33 mΩ
- Rated impulse withstand voltage
- 6 kV
Rated voltage500 V
Rated current24 A
StandardsIEC 61984, In accordance with IEC 60947-7-1
Power loss in accordance with IEC 60947-7-x0.77 W
Pollution severity3
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, min.
- 0.13 mm²
- Gauge to IEC 60947-1
- A2
- Stripping length
- 10 mm
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 4 mm²
Clamping range, max.4 mm²
Connection directiontop
Number of connections4
Type of connectionTension-clamp connection
Wire connection cross section AWG, min.AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.2.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
Ul Rating Data
- Certificate No. (cURus)
- E60693
- Conductor size Factory wiring min. (cURus)
- 26 AWG
- Conductor size Field wiring min. (cURus)
- 26 AWG
- Current size D (cURus)
- 5 A
- Voltage size D (cURus)
- 600 V
Conductor size Factory wiring max. (cURus)12 AWG
Conductor size Field wiring max. (cURus)12 AWG
Current size C (cURus)20 A
Voltage size C (cURus)300 V
