Weidmuller 1041650000 WDK 2.5N DU-PE
Weidmuller 1041650000 WDK 2.5N DU-PE
- MPN: 1041650000
- PPN: WDM-1041650000
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$12.47/ EA
Description

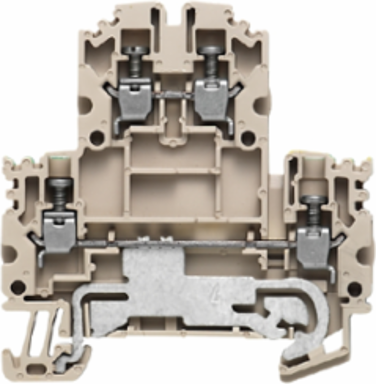

Double-tier terminal, Screw connection, 2.5 mm², 800 V, 24 A, dark beige
Specifications
Approvals
- Approvals
- CE, CSA, DEMKOATEX, EAC, GERMLLOYD, IECEXULD, KEMAATEX, KEMAKEUR
ROHSConform
Dimensions And Weights
- Width
- 5.1 mm
- Height
- 61 mm
- Depth
- 62 mm
- Depth including DIN rail
- 62.45 mm
Width (inches)0.201 inch
Height (inches)2.402 inch
Depth (inches)2.441 inch
Net weight16.233 g
Csa Rating Data
- Certificate No. (CSA)
- 200039-1057876
- Current size D (CSA)
- 5 A
- Voltage size D (CSA)
- 600 V
- Wire cross section min. (CSA)
- 26 AWG
Current size B (CSA)20 A
Voltage size B (CSA)300 V
Wire cross section max. (CSA)12 AWG
2 Clampable Conductors (H05V/H07V) With Equal Cross-Section (Rated Connection)
- Wire connection cross section, finely stranded, two clampable wires, min.
- 0.5 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.
- 0.5 mm²
Wire cross-section, finely stranded, two clampable wires, max.1.5 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.1.5 mm²
Additional Technical Data
- Explosion-tested version
- Yes
- Open sides
- right
Number of similar terminals1
Type of mountingSnap-on
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourdark beige
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000897
- eClass 9.0
- 27-14-11-20
- eClass 10.0
- 27-14-11-20
ETIM 7.0EC000897
eClass 9.127-14-11-20
UNSPSC30-21-18-11
System Specifications
- Version
- Screw connection, for plug-in cross-connector, With PE connection, One end without connector
- Number of potentials
- 2
- Number of clamping points per level
- 2
- Levels cross-connected internally
- No
- Rail
- TS 35
- PE function
- Yes
End cover plate requiredYes
Number of levels2
Number of potentials per tier1
PE connectionYes
N-functionNo
PEN functionNo
Temperatures
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Storage temperature, min.
- 10 °C
- Continuous operating temp., min.
- -50 °C
Storage temperature, max.40 °C
Storage temperature10 °C...40 °C
Continuous operating temp., max.120 °C
Rating Data
- Rated cross-section
- 2.5 mm²
- Rated current
- 24 A
- Standards
- IEC 60947-7-1 (-7-2)
- Power loss in accordance with IEC 60947-7-x
- 0.77 W
- Pollution severity
- 3
Rated voltage800 V
Current at maximum wires28 A
Volume resistance according to IEC 60947-7-x1.33 mΩ
Rated impulse withstand voltage8 kV
Rating Data Iecex/Atex
- Certificate No. (ATEX)
- KEMA00ATEX2061U
- Max. voltage (ATEX)
- 550 V
- Wire cross section max. (ATEX)
- 2.5 mm²
- Current (IECEX)
- 24 A
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Ex 2014/34/EU label
- II 2 G D
Certificate No. (IECEX)IECEXULD15.0003U
Current (ATEX)21 A
Max. voltage (IECEX)550 V
Wire cross section max. (IECEX)4 mm²
Marking EN 60079-7Ex eb II C Gb
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, min.
- 0.05 mm²
- Connection cross-section, stranded, max.
- 4 mm²
- Connection direction
- on side
- Number of connections
- 4
- Tightening torque, max.
- 0.6 Nm
- Torque level with DMS electric screwdriver
- 1
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 4 mm²
Clamping range, max.4 mm²
Clamping screwM 2.5
Connection cross-section, stranded, min.1.5 mm²
Gauge to IEC 60947-1A3
Stripping length8 mm
Tightening torque, min.0.4 Nm
Type of connectionScrew connection
Wire connection cross section AWG, min.AWG 30
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.2.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
