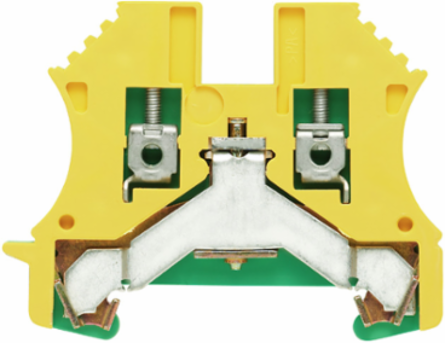

Weidmuller 1010000000 WPE 2.5
- MPN: 1010000000
- PPN: WDM-1010000000
CAD
$8.60
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PE terminal, Screw connection, 2.5 mm², 300 A (2.5 mm²), Green/yellow
Documentation & Downloads
Specifications
Additional
| Rated Voltage | 800 V |
|---|---|
| Rated short-time current | 300 A (2.5 mm2) |
| Dimensions (H x W x D) | 60 mm x 5.1 mm x 46.5 mm |
| Width | 5.1 mm (0.201 inch) |
| Depth including DIN rail | 47 mm |
| Number of Connections | 2 |
| Mounting Type | TS 35 rail (when screwed in) |
| Clamping Range | 0.05 mm2 - 4 mm2 |
| Material | Wemid (plastic) |
| Standards | IEC 60947-7-2 |
| Ex 2014/34/EU label | II 2 G D |
| PEN Function | No |
| Colour | Green/yellow |
| Rated impulse withstand voltage to adjacent terminal | 8 kV |
|---|---|
| Continuous Operating Temperature Range | -60 C to 130 C |
| Height | 60 mm (2.362 inch) |
| Depth | 46.5 mm (1.831 inch) |
| Weight | 16.22 g |
| Number of Levels | 1 |
| Connection Type | Screw connection |
| Torque Tightening Range | 0.4 Nm - 0.6 Nm |
| UL 94 Flammability Rating | V-0 |
| Compliance | RoHS, UL Listed (E60693), IECEx, ATEX, CE, CSA, DEMKO ATEX |
| PE Function | Yes |
| Number of Potentials | 1 |
