Weidmuller 1010200000 WPE 6
Weidmuller 1010200000 WPE 6
- MPN: 1010200000
- PPN: WDM-1010200000
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$9.81/ EA
Description

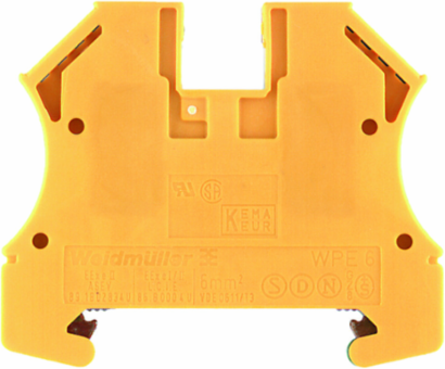

PE terminal, Screw connection, 6 mm², 720 A (6 mm²), Green/yellow
Specifications
Approvals
- Approvals
- CE, CSA, CSAEX, CURUSEX, DEMKOATEX, DNV GL, EAC, GERMLLOYD, IECEXULD, INMETRO, KEMAKEUR, LLOYDSREG, MARITREG, NEMKO, UR
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 7.9 mm
- Height
- 56 mm
- Depth
- 46.5 mm
- Depth including DIN rail
- 47 mm
Width (inches)0.311 inch
Height (inches)2.205 inch
Depth (inches)1.831 inch
Net weight25.98 g
Dimensions
- TS 35 offset
- 50 mm
Csa Rating Data
- Certificate No. (CSA)
- 200039-1888378
- Wire cross section min. (CSA)
- 20 AWG
Wire cross section max. (CSA)8 AWG
Additional Technical Data
- Explosion-tested version
- Yes
- Interlock
- for screw fixing
- Open sides
- closed
Installation advicewhen screwed in
Number of similar terminals1
Type of mountingwhen screwed in
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
ColourGreen/yellow
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000901
- eClass 9.0
- 27-14-11-41
- eClass 10.0
- 27-14-11-41
ETIM 7.0EC000901
eClass 9.127-14-11-41
UNSPSC30-21-18-11
System Specifications
- Version
- Screw connection, With PE connection, in closed state
- Number of potentials
- 1
- Number of clamping points per level
- 2
- Levels cross-connected internally
- No
- Rail
- TS 35
- PE function
- Yes
End cover plate requiredNo
Number of levels1
Number of potentials per tier1
PE connectionYes
N-functionNo
PEN functionNo
Temperatures
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Storage temperature, min.
- 10 °C
- Continuous operating temp., min.
- -60 °C
Storage temperature, max.40 °C
Storage temperature10 °C...40 °C
Continuous operating temp., max.130 °C
Pe Rating Data
- Rated short-time current
- 720 A (6 mm²)
- Tightening torque range for fixing screw
- 0.5...1.0 Nm
Centre screw on PE terminalsM 3
PEN functionNo
Rating Data
- Rated cross-section
- 6 mm²
- Standards
- IEC 60947-7-2
- Power loss in accordance with IEC 60947-7-x
- 1.31 W
- Pollution severity
- 3
Rated voltage to adjoining terminal800 V
Volume resistance according to IEC 60947-7-x0.78 mΩ
Rated impulse withstand voltage to adjacent terminal8 kV
Rating Data Iecex/Atex
- Certificate No. (ATEX)
- DEMKO14ATEX1338U
- Wire cross section max. (ATEX)
- 6 mm²
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Ex 2014/34/EU label
- II 2 G D
Certificate No. (IECEX)IECEXULD14.0005U
Wire cross section max. (IECEX)6 mm²
Marking EN 60079-7Ex eb II C Gb
Conductors For Clamping (Rated Connection)
- Blade size
- 4.0 x 0.8 mm
- Clamping range, min.
- 0.08 mm²
- Connection cross-section, stranded, max.
- 10 mm²
- Connection direction
- on side
- Number of connections
- 2
- Tightening torque, max.
- 1.3 Nm
- Type of connection
- Screw connection
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 6 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 6 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Clamping range, max.10 mm²
Clamping screwM 3
Connection cross-section, stranded, min.1.5 mm²
Gauge to IEC 60947-1A5
Stripping length12 mm
Tightening torque, min.0.8 Nm
Wire connection cross section, finely stranded, max.10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.5 mm²
Wire connection cross-section, solid core, max.10 mm²
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring min. (UR)
- 20 AWG
- Conductor size Field wiring min. (UR)
- 20 AWG
Conductor size Factory wiring max. (UR)8 AWG
Conductor size Field wiring max. (UR)8 AWG
