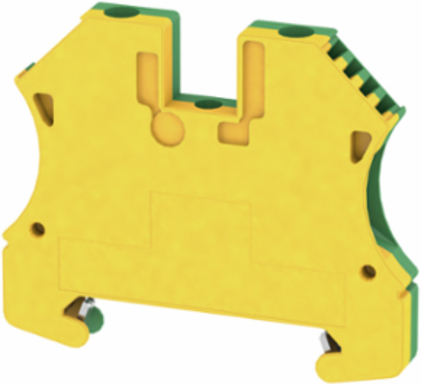

Weidmuller 1010100000 WPE 4
- MPN: 1010100000
- PPN: WDM-1010100000
CAD
$7.36
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PE terminal, Screw connection, 4 mm², 480 A (4 mm²), Green/yellow
Documentation & Downloads
Specifications
Additional
| Current Rating | 480 A (4 mm2) |
|---|---|
| Rated Voltage to Adjoining Terminal | 800 V |
| Rated Cross-Section | 4 mm2 |
| Number of Connections | 2 |
| Tightening Torque | 0.5...1 Nm |
| Clamping Screw Size | M3 |
| Width | 6.1 mm (0.24 inch) |
| Depth | 46.5 mm (1.831 inch) |
| Mounting Type | Screw fixing on TS 35 rail |
| Flammability Rating | UL 94 V-0 |
| Certificate Number (ATEX) | DEMKO14ATEX1338U |
| Certificate Number (IECEX) | IECEXULD14.0005U |
| Explosion-Tested Version | Yes |
| Storage Temperature Range | 10 b0C to 40 b0C |
| Color | Green/yellow |
| Rated Voltage | 800 V |
|---|---|
| Rated DC Voltage | 800 V |
| Connection Type | Screw connection |
| Number of Levels | 1 |
| Stripping Length | 10 mm |
| Blade Size | 0.6 x 3.5 mm |
| Height | 56 mm (2.205 inch) |
| Depth Including DIN Rail | 47.5 mm |
| Material | Wemid |
| Compliance | RoHS, UL, IECEx, ATEX, CSA, CE, CSAEX, CURUSEX, DEMKOATEX, DNV GL, EAC, GERMLLOYD, INMETRO, KEMAKEUR, LLOYDSREG, MARITREG, NEMKO, UR |
| Certificate Number (CSA) | 200039-1888378 |
| UL File Number | E60693 |
| Pollution Severity | 3 |
| Operating Temperature Range | -60 b0C to 130 b0C |
