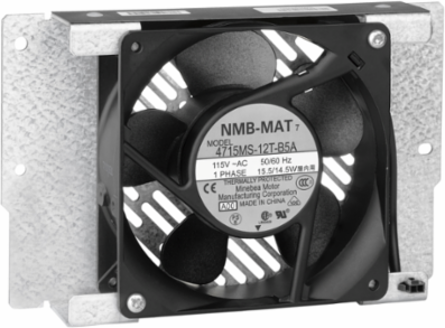

Schneider Electric VZ3V22D1110V Fan Kit for Altistart 22 Soft Starter, 110V, Cooling Accessory, 17.3cm x 23cm x 7.3cm, 1.148kg
- MPN: VZ3V22D1110V
- PPN: SCH-VZ3V22D1110V
CAD
$196.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is a wear part for Drive Altistart 22. This Fan for variable speed drive is a cooling accessory. Please review wear parts allocation document to undestand the required quantity depending on drive range and size. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 17.3cm (width) x 23cm (Length) x 7.3cm (Height) and weighs 1.148kg. This power fan is compatible with ATS22C21S6U to C41S6U. This kit includes 1 Fan, 1 Mounting bracket, 1 Instruction sheet. The integrated functions of Altistart 22 soft start/soft stop units are compatible with the more common types of application found in the construction, infrastructure, or industrial sectors and specialist machinery.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Important Information Attributes
- Kit Composition
- fan, mounting bracket, instruction sheet
- Local Publishable Date
- 2026-06-02
- Stocking Flag
- Y
- Device Type
- Soft starter - Soft starter option & accessory
- Traceability
- No
- Weee Scope
- Out
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- Product Contributes To Saved And Avoided Emissions
- No
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- No
- Accessory / Separate Part Category
- cooling accessory
- Accessory / Separate Part Type
- fan kit
- Package Weight(Lbs)
- 1.151 kg
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Service Catalog ItemSpare part
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1810
China Rohs In ScopeNo
Product Kit IdentifierN
Product Or Component Typefan
Sustainable PackagingNo
Accessory / Separate Part Destinationsoft starter
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Reach Free Shvc
- Yes
- Eu Rohs Directive
- Compliant By Exemption
- Reach Free Of Svhc
- Yes
Take BackNo
Mercury FreeYes
Product Compatibilitysoft starter ATS22 110...115 V 206 x 299 x 425 mm)
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- fan
ETIM
- ETIM 8
- EC002025
ETIM 9EC002025
