Schneider Electric

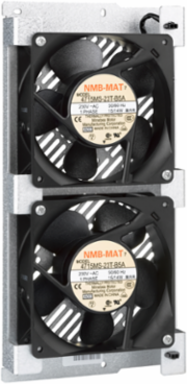

Schneider Electric VZ3V22E1220V Altistart 22 Fan Kit, 30cm x 40cm x 12.2cm, 2.195kg

Altistart 22 Fan Kit, 30cm x 40cm x 12.2cm, 2.195kg
  • MPN: VZ3V22E1220V
  • PPN: SCH-VZ3V22E1220V

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$277.09/ EA

Description

This product is a wear part for Drive Altistart 22. This Fan for variable speed drive is a cooling accessory. Please review wear parts allocation document to undestand the required quantity depending on drive range and size. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 30cm (width) x 40cm (Length) x 12.2cm (Height) and weighs 2.195kg. This power fan is compatible with ATS22C48Q to C59Q, ATS22C48S6 to C59S6. This kit includes 1 Fan, 1 Mounting bracket, 1 Instruction sheet. The integrated functions of Altistart 22 soft start/soft stop units are compatible with the more common types of application found in the construction, infrastructure, or industrial sectors and specialist machinery.

Specifications

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Mercury Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes

Specifications

Accessory / Separate Part Category
cooling accessory
Product Or Component Type
fan
Range CompatibilityAltistar 22
Accessory / Separate Part Typefan kit

Complementary

Product Compatibility
soft starter ATS22 220...230 V 304 x 340 x 455 mm)
Accessory / Separate Part Destination
soft starter
Kit Compositionfan || mounting bracket || instruction sheet
