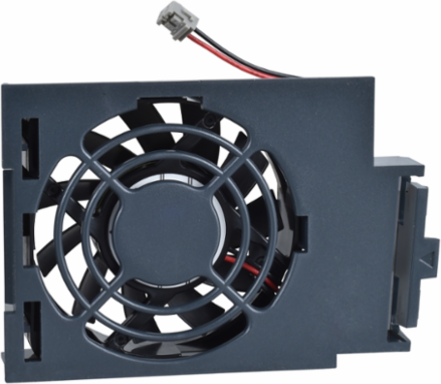

Schneider Electric VZ3V3102 Wear part, fan kit for variable speed drive, Altivar 212, Altivar 312, 2.2 to 5.5 kW, 1 and 3 phase
Schneider Electric VZ3V3102 Wear part, fan kit for variable speed drive, Altivar 212, Altivar 312, 2.2 to 5.5 kW, 1 and 3 phase
- MPN: VZ3V3102
- PPN: SCH-VZ3V3102
- UNSPSC: 39122001
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$62.97/ EA
Description
This product is a wear part for Drive Altivar 212, Altivar 312. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives ATV212 from 0.75kw to 2.2kw and a rated voltage from 200V to 480V, for Altivar 312 from 0.37 to 2.2kw and a rated voltage from 200V to 600V. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 16.8cm (width) x 23.2cm (Length) x 7.1cm (Height) and weighs 243g. This power fan is compatible with ATV312HU55M3, HU75M3, ATV312HU55N4, HU75N4, ATV312HU55S6, HU75S6. This kit includes 1 Fan, 1 Mounting bracket, 1 Instruction sheet. The Altivar 212 is a variable speed drive for 3-phase asynchronous motors from 0.75 kW to 75 kW. Specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC). Energy savings of up to 70% can be achieved compared to a traditional control system, thanks to eco-energy design.The Altivar 312 is designed for robustness and compatibility with the control system architectures of your machines.
Features
- High quality construction
- Limited Noise
- Higher efficiency
- Increase Drive life time
- Reduced drive downtime possibility
Specifications
Important Information Attributes
- Kit Composition
- fan, mounting bracket, instruction sheet
- Local Publishable Date
- 2025-07-10
- Device Type
- Variable speed drive - VSD option & accessory
- Traceability
- No
- Legacy WEEE Scope
- Out
- Product Contributes To Saved And Avoided Emissions
- No
- Package Weight Lbs
- 235.0 g
- Product Or Component Type
- fan
- Sustainable Packaging
- No
- Accessory Separate Part Type2
- fan kit
- Stocking Flag
- Y
- Global Commercial Status
- Commercialised
Local Data StatusPublishable
ManufacturerSchneider Electric
ServiceabilityNo
Service Catalog ItemSpare part
Scope PerimeterAt least in Europe
Return IndicatorY
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityYes
Accessory Separate Part Category2cooling accessory
Medium DescWear part, fan kit for variable speed drive, Altivar 212, Altivar 312, 2.2 to 5.5 kW, 1 and 3 phase
Product Kit IdentifierN
Environment Attributes Main
- Take Back
- No, Nej
Product Compatibilityvariable speed drive ATV312 2.2-2.2 kW 200...240 V single phase, variable speed drive ATV312 3-4 kW 200...240 V three phase, variable speed drive ATV312 2.2-4 kW 380...500 V three phase, variable speed drive ATV312 2.2-4 kW 525...600 V three phase, variable speed drive ATV212 3-4 kW 200...240 V three phase, variable speed drive ATV212 3-5.5 kW 380...480 V three phase
General Attributes
- Product Or Component Type
- fan
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- United States
