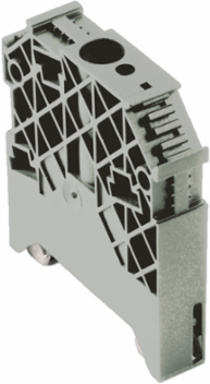

Weidmuller 1227890000 WEW 35/1 GR
- MPN: 1227890000
- PPN: WDM-1227890000
CAD
$5.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
W-Series, End bracket
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 12 mm
- Height
- 56 mm
- Depth
- 62.5 mm
- Net weight
- 34.62 g
Width (inches)0.472 inch
Height (inches)2.205 inch
Depth (inches)2.461 inch
Additional Technical Data
- Installation advice
- Direct mounting
- Type of mounting
- when screwed in
Interlockfor screw fixing
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-2
Colourgrey
Classifications
- ETIM 6.0
- EC001041
- eClass 9.0
- 27-14-11-35
- eClass 10.0
- 27-14-11-35
ETIM 7.0EC001041
eClass 9.127-14-11-35
System Specifications
- Version
- For the terminals
RailTS 35
Temperatures
- Continuous operating temp., min.
- -50 °C
Continuous operating temp., max.100 °C
Conductors For Clamping (Rated Connection)
- Tightening torque, max.
- 2.4 Nm
Tightening torque, min.1.2 Nm
