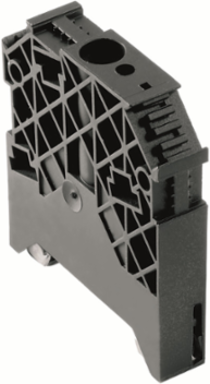

Weidmuller 1478990000 WEW 35/1 V0 GF SW
- MPN: 1478990000
- PPN: WDM-1478990000
CAD
$4.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
W-Series, End bracket
Documentation & Downloads
Specifications
Approvals
| Approvals | DNV GL |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 12 mm |
|---|---|
| Height | 56 mm |
| Depth | 63 mm |
| Net weight | 37.82 g |
| Width (inches) | 0.472 inch |
|---|---|
| Height (inches) | 2.205 inch |
| Depth (inches) | 2.48 inch |
Additional Technical Data
| Installation advice | Direct mounting |
|---|---|
| Type of fixing | when screwed in |
| With snap-in pegs | No |
| Interlock | for screw fixing |
|---|---|
| Type of mounting | when screwed in |
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | black |
|---|
Classifications
| ETIM 6.0 | EC001041 |
|---|---|
| eClass 9.0 | 27-14-11-35 |
| eClass 10.0 | 27-14-11-35 |
| ETIM 7.0 | EC001041 |
|---|---|
| eClass 9.1 | 27-14-11-35 |
System Specifications
| Version | For the terminals |
|---|
| Rail | TS 35 |
|---|
Temperatures
| Continuous operating temp., min. | -50 °C |
|---|
| Continuous operating temp., max. | 130 °C |
|---|
Conductors For Clamping (Rated Connection)
| Tightening torque, max. | 2.4 Nm |
|---|
| Tightening torque, min. | 2.4 Nm |
|---|
