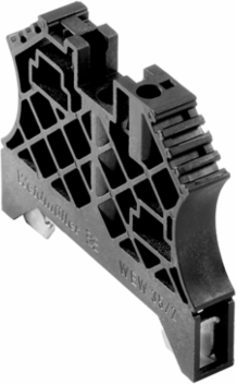

Weidmuller 1061210000 WEW 35/2 SW
- MPN: 1061210000
- PPN: WDM-1061210000
CAD
$3.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
W-Series, End bracket
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 8 mm |
|---|---|
| Height | 56 mm |
| Depth | 47 mm |
| Net weight | 14.3 g |
| Width (inches) | 0.315 inch |
|---|---|
| Height (inches) | 2.205 inch |
| Depth (inches) | 1.85 inch |
Dimensions
| TS 35 offset | 28 mm |
|---|
Additional Technical Data
| Installation advice | Direct mounting |
|---|---|
| Type of mounting | when screwed in |
| Interlock | for screw fixing |
|---|
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-2 |
| Colour | black |
|---|
Classifications
| ETIM 6.0 | EC001041 |
|---|---|
| eClass 9.0 | 27-14-11-35 |
| eClass 10.0 | 27-14-11-35 |
| ETIM 7.0 | EC001041 |
|---|---|
| eClass 9.1 | 27-14-11-35 |
System Specifications
| Version | For the terminals |
|---|
| Rail | TS 35 |
|---|
Temperatures
| Continuous operating temp., min. | -50 °C |
|---|
| Continuous operating temp., max. | 100 °C |
|---|
Conductors For Clamping (Rated Connection)
| Tightening torque, max. | 1 Nm |
|---|
| Tightening torque, min. | 0.5 Nm |
|---|
