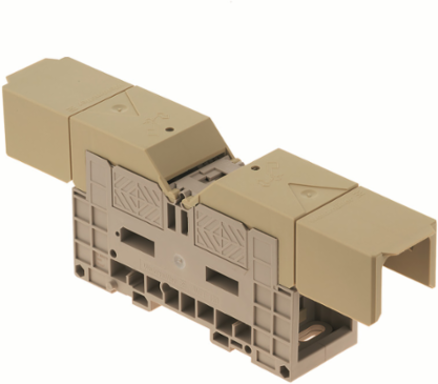

Weidmuller 1029600000 WFF 185/AH
- MPN: 1029600000
- PPN: WDM-1029600000
CAD
$72.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 185 mm², Threaded stud connection
Documentation & Downloads
Specifications
Stud Connection
- 2 x cable lugs DIN 46 234
- 10...185 mm²
- Cable lug to DIN 46234
- 10...240 mm²
- Stud size for spade connection
- M 12
- Tightening torque, min.
- 14 Nm
2 x cable lugs DIN 46 23525...185 mm²
Cable lug to DIN 4623525...240 mm²
Tightening torque, max.31 Nm
Approvals
- Approvals
- CE, CSA, CSAEX, CURUSEX, DNV GL, EAC, IECEXKEM, MARITREG, NEMKO, UR
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 55 mm
- Height
- 163 mm
- Depth
- 89.5 mm
- Depth including DIN rail
- 87 mm
- Net weight
- 469.84 g
Width (inches)2.165 inch
Height (inches)6.417 inch
Depth (inches)3.524 inch
Weight455 g
Csa Rating Data
- Certificate No. (CSA)
- 200039-1244019
- Current size D (CSA)
- 5 A
- Voltage size D (CSA)
- 600 V
- Wire cross section min. (CSA)
- 8 AWG
Current size C (CSA)360 A
Voltage size C (CSA)600 V
Wire cross section max. (CSA)500 kcmil
Additional Technical Data
- Explosion-tested version
- Yes
- Open sides
- closed
Number of similar terminals1
Type of mountingSnap-on
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourdark beige
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000897
- eClass 9.0
- 27-14-11-20
- eClass 10.0
- 27-14-11-20
ETIM 7.0EC000897
eClass 9.127-14-11-20
UNSPSC30-21-18-01
System Specifications
- End cover plate required
- No
- Number of clamping points per level
- 2
- PE connection
- No
Number of levels1
Levels cross-connected internallyNo
RailTS 35
Temperatures
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Storage temperature, min.
- 10 °C
- Continuous operating temp., min.
- -50 °C
Storage temperature, max.40 °C
Storage temperature10 °C...40 °C
Continuous operating temp., max.120 °C
Rating Data
- Rated cross-section
- 185 mm²
- Rated current
- 353 A
- Volume resistance according to IEC 60947-7-x
- 0.09 mΩ
- Rated impulse withstand voltage
- 8 kV
Rated voltage1,000 V
Current at maximum wires415 A
Power loss in accordance with IEC 60947-7-x11.3 W
Pollution severity3
Rating Data Iecex/Atex
- Certificate No. (ATEX)
- KEMA98ATEX1684U
- Max. voltage (ATEX)
- 1100 V
- Wire cross section max. (ATEX)
- 185 mm²
- Current (IECEX)
- 307 A
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Ex 2014/34/EU label
- II 2 G D
Certificate No. (IECEX)IECEXKEM07.0053U
Current (ATEX)307 A
Max. voltage (IECEX)1100 V
Wire cross section max. (IECEX)185 mm²
Marking EN 60079-7Ex eb II C Gb
Conductors For Clamping (Rated Connection)
- 2 x cable lugs DIN 46 234
- 10...185 mm²
- Cable lug to DIN 46234
- 10...240 mm²
- Clamping range, max.
- 240 mm²
- Number of connections
- 2
- Tightening torque, max.
- 31 Nm
- Type of connection
- Threaded stud connection
2 x cable lugs DIN 46 23525...185 mm²
Cable lug to DIN 4623525...240 mm²
Clamping range, min.10 mm²
Stud size for spade connectionM 12
Tightening torque, min.14 Nm
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring min. (UR)
- 8 AWG
- Conductor size Field wiring min. (UR)
- 8 AWG
- Voltage size C (UR)
- 1000 V
Conductor size Factory wiring max. (UR)500 AWG
Conductor size Field wiring max. (UR)500 AWG
Current size C (UR)380 A
