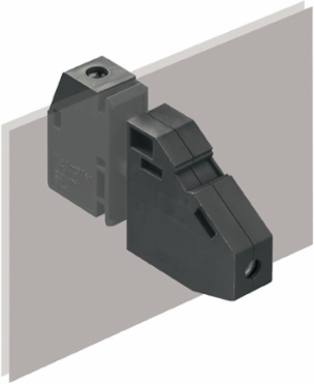

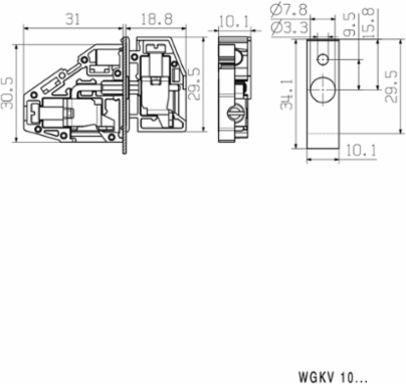

Weidmuller 2439560000 WGKV 10 BL BX

MPN: 2439560000
PPN: WDM-2439560000

$9.54

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

OMNIMATE Power - series WGK, Feed-through terminal, Rated cross-section: 10 mm², Wemid (PA)

Documentation & Downloads

Specifications

Rated Data Acc. To Ul 1059

Institute (cURus)	cURus
Rated voltage (Use group B / UL 1059)	300 V
Rated current (Use group B / UL 1059)	65 A
Wire cross-section, AWG, min.	AWG 24
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Certificate No. (cURus)	E60693
Rated voltage (Use group C / UL 1059)	300 V
Rated current (Use group C / UL 1059)	65 A
Wire cross-section, AWG, max.	AWG 6

Approvals

Approvals	cURus
UL File Number Search	E60693

ROHS	Conform

Dimensions And Weights

Net weight	20.16 g

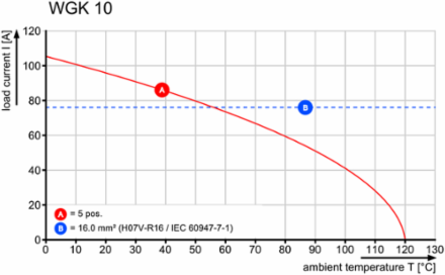

Rated Data Acc. To Iec

tested acc. to standard	IEC 60664-1, IEC 61984
Rated current, max. number of poles (Tu=20°C)	57 A
Rated impulse voltage for surge voltage class/ contamination degree III/3	6 kV

Rated current, min. number of poles (Tu=20°C)	57 A
Rated voltage for surge voltage class / pollution degree III/3	500 V

Material Data

Insulating material	Wemid (PA)
Colour chart (similar)	RAL 5012
Contact material	E-Cu
Storage temperature, min.	-25 °C
Max. relative humidity during storage	80 %
Operating temperature, max.	120 °C
Temperature range, installation, max.	120 °C

Colour	blue
UL 94 flammability rating	V-0
Contact surface	tinned
Storage temperature, max.	55 °C
Operating temperature, min.	-50 °C
Temperature range, installation, min.	-25 °C

Classifications

ETIM 6.0	EC001283
eClass 9.0	27-14-11-34
eClass 10.0	27-14-11-34

ETIM 7.0	EC001283
eClass 9.1	27-14-11-34

System Parameters

Product family	OMNIMATE Power - series WGK
Conductor outlet direction	90°/270°
Screwdriver blade	0.8 x 4.0
Tightening torque, max.	2.4 Nm
Stripping length	11 mm

Wire connection method	Screw connection
Fitted by customer	No
Tightening torque, min.	1.2 Nm
Clamping screw	M 4
Touch-safe protection acc. to DIN VDE 0470	IP 20

Packing

Packaging	Box
VPE width	355 mm

VPE length	495 mm
VPE height	182 mm

Notes

Clearance and creepage distances to other components must be devised in accordance with the relevant application standard. This can be achieved in the device by full encapsulation or by the use of additional spacer plates. Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. Colours: SW = black; GN/YL = green/yellow; GY = grey Additional colours on request WGK: Rated voltage plastic walls: 1 - 4 mm = 500 V; metal walls: 1 - 2.5 mm = 400 V; metal walls: 2.5 - 4 mm = 250 V

Conductors Suitable For Connection

Clamping range, min.	0.5 mm²
Wire connection cross section AWG, min.	AWG 24
Solid, min. H05(07) V-U	0.5 mm²
Stranded, min. H07V-R	10 mm²
Flexible, min. H05(07) V-K	0.5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.	0.5 mm²
Max. clamping range	16 mm²

Clamping range, max.	16 mm²
Wire connection cross section AWG, max.	AWG 6
Solid, max. H05(07) V-U	16 mm²
Stranded, max. H07V-R	16 mm²
Flexible, max. H05(07) V-K	10 mm²
w. wire end ferrule, DIN 46228 pt 1, max.	10 mm²
