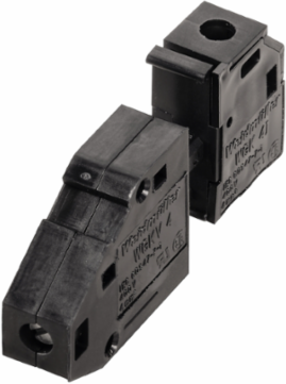

Weidmuller 1250950000 WGKV 4 BK BX
- MPN: 1250950000
- PPN: WDM-1250950000
CAD
$5.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
OMNIMATE Power - series WGK, Feed-through terminal, Rated cross-section: 4 mm², Screw connection, Wemid (PA), black, Direct mounting, Feed-through (bushing)
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (cURus)
- cURus
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated voltage (Use group D / UL 1059)
- 300 V
- Rated current (Use group C / UL 1059)
- 30 A
- Wire cross-section, AWG, min.
- AWG 30
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (cURus)E60693
Rated voltage (Use group C / UL 1059)300 V
Rated current (Use group B / UL 1059)30 A
Rated current (Use group D / UL 1059)10 A
Wire cross-section, AWG, max.AWG 10
Approvals
- Approvals
- cURus, EAC
- UL File Number Search
- E60693
ROHSConform

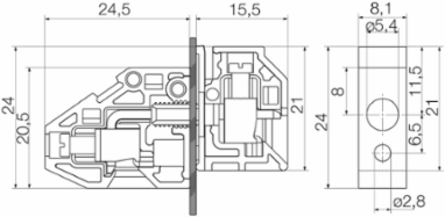

Dimensions And Weights
- Length
- 40 mm
- Width
- 8.1 mm
- Height
- 24 mm
- Height of lowest version
- 24 mm
Length (inches)1.575 inch
Width (inches)0.319 inch
Height (inches)0.945 inch
Net weight8.6 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
- Rated current, max. number of poles (Tu=20°C)
- 32 A
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 6 kV
Rated current, min. number of poles (Tu=20°C)32 A
Rated voltage for surge voltage class / pollution degree III/3500 V
Material Data
- Insulating material
- Wemid (PA)
- Colour chart (similar)
- RAL 9011
- Contact material
- E-Cu
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 120 °C
- Temperature range, installation, max.
- 120 °C
Colourblack
UL 94 flammability ratingV-0
Contact surfacetinned
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-25 °C
Classifications
- ETIM 6.0
- EC001283
- eClass 9.0
- 27-14-11-34
- eClass 10.0
- 27-14-11-34
ETIM 7.0EC001283
eClass 9.127-14-11-34
System Parameters
- Product family
- OMNIMATE Power - series WGK
- Conductor outlet direction
- 90°/270°
- Screwdriver blade
- 0.6 x 3.5
- Tightening torque, max.
- 0.8 Nm
- Stripping length
- 8 mm
Wire connection methodScrew connection
Fitted by customerNo
Tightening torque, min.0.6 Nm
Clamping screwM 3
Touch-safe protection acc. to DIN VDE 0470IP 20
Packing
- Packaging
- Box
- VPE width
- 85 mm
VPE length80 mm
VPE height150 mm
Notes
- Notes
- Clearance and creepage distances to other components must be devised in accordance with the relevant application standard. This can be achieved in the device by full encapsulation or by the use of additional spacer plates. Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. Colours: SW = black; GN/YL = green/yellow; GY = grey Additional colours on request WGK: Rated voltage plastic walls: 1 - 4 mm = 500 V; metal walls: 1 - 2.5 mm = 400 V; metal walls: 2.5 - 4 mm = 250 V WGKV: Rated voltage plastic walls: 1 - 4 mm = 400 V; metal walls: 1 - 2.5 mm = 400 V; metal walls: 2.5 - 4 mm = 250 V VWGK: Rated voltage plastic walls: 1 - 4 mm = 500 V; metal walls: 1 - 4 mm = 500 V
Conductors Suitable For Connection
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 30
- Solid, min. H05(07) V-U
- 0.5 mm²
- Flexible, min. H05(07) V-K
- 0.5 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.
- 0.5 mm²
- Max. clamping range
- 6 mm²
Clamping range, max.6 mm²
Wire connection cross section AWG, max.AWG 10
Solid, max. H05(07) V-U6 mm²
Flexible, max. H05(07) V-K4 mm²
w. wire end ferrule, DIN 46228 pt 1, max.4 mm²
Rated Data Acc. To Csa
- Rated voltage (Use group B / CSA)
- 300 V
- Rated voltage (Use group D / CSA)
- 300 V
- Rated current (Use group C / CSA)
- 30 A
- Wire cross-section, AWG, min.
- AWG 30
Rated voltage (Use group C / CSA)300 V
Rated current (Use group B / CSA)30 A
Rated current (Use group D / CSA)10 A
Wire cross-section, AWG, max.AWG 10
