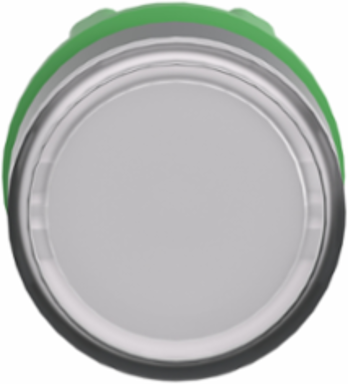

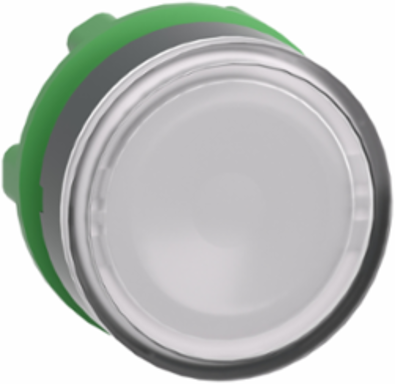

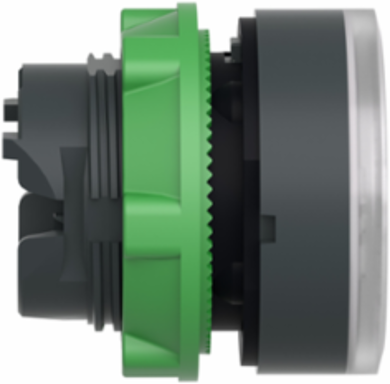

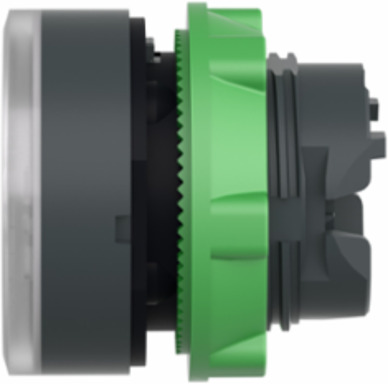

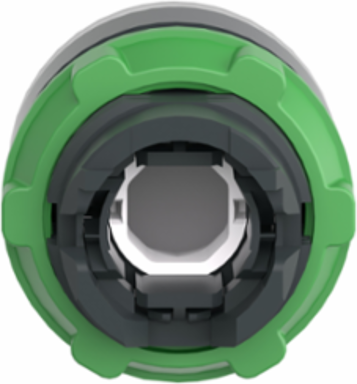

Schneider Electric ZB5AW313 Harmony XB5 22mm Illuminated Push Button Head, Spring Return, IP66
- MPN: ZB5AW313
- PPN: SCH-ZB5AW313
CAD
$13.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony XB5, plain lens illuminated white flush head for integral LED operates with a spring return / impulse mechanism. This illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
Features
- As a modular configurable switch body, this white flush head requires a standard ZB5AZ fixing collar/contact block and a ZBV integral LED light block to become fully functional. This component-level flexibility allows automation engineers to customize electrical contact configurations (such as standard, low-current, or high-power switching) using a single, cost-effective pilot device framework.
- This illuminated operator features a white plain lens designed specifically for use with a universal, high-brightness integral LED block. This optimized illumination configuration ensures vibrant status indication that remains highly visible even in brightly lit manufacturing facilities, helping operators confirm machine status or system resets at a glance.
- Featuring elite IP66, IP67, IP69, and IP69K ingress ratings, along with NEMA 4X and NEMA 13 enclosure certifications, this operator withstands high-pressure washdowns up to 1015.3 psi (7,000,000 Pa) at 131°F (55°C). It provides superior chemical robustness against cleaning solvents, cutting oils, and detergents, making it ideal for harsh food and beverage processing, marine applications, or wastewater treatment plants.
- Built for extreme heavy-duty industrial applications, the spring-return (momentary) mechanism boasts a mechanical durability rating of 10,000,000 cycles. This industrial-grade endurance guarantees long-term operational reliability and crisp tactile feedback on high-frequency machine HMI panels, minimizing the risk of unexpected switch failure.
- This ruggedized thermoplastic switch head maintains strict functional integrity across a broad ambient operating temperature range from -40°F to 158°F (-40°C to 70°C). This wide thermal threshold prevents component cracking or sticking, making it perfectly suited for extreme environments ranging from sub-zero outdoor public works to hot energy distribution panels.
Documentation & Downloads
Specifications
Key Specifications
- Operator Additional Information
- with plain lens
- Mounting Diameter
- 22 mm
- Product Or Component Type
- head for illuminated push-button
- Head Type
- standard
- Bezel Material
- dark grey plastic
- Product Compatibility
- universal LED
Range Of ProductHarmony XB5
Type Of Operatorspring return
Shape Of Signaling Unit Headround
Sale Per Indivisible Quantity1
Operator Profilewhite flush, unmarked
Device Short NameZB5
Complementary
- Main Group
- illum push-button
- Net Weight
- 0.017 kg
- Device Presentation
- basic sub-assemblies
- Cap/Operator Or Lens Colour
- white
- Marking
- unmarked
- Cad Overall Width
- 29 mm
- Group Of Product
- flush push integral LED
Electrical Composition CodeM1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
Cad Overall Height29 mm
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Mechanical Durability10000000 cycles
Station NameXALD 1...5 cut-outs || XALK 2...5 cut-outs
Cad Overall Depth30 mm
Environment
- Product Certifications
- DNV || UL listed || LROS (Lloyds register of shipping) || CSA || BV || GL
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Overvoltage Category
- class II IEC 60536
- Protective Treatment
- TC
Ik Degree Of ProtectionIK05 conforming to EN 50102
StandardsUL 508 || GB 14048.5 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-1 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1710010EN
Important Information
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
