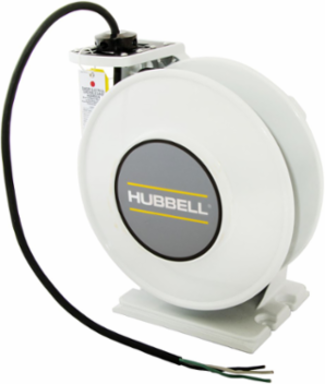

Hubbell Wiring Device-Kellems HBLI45124 White Industrial Reel, 45 Ft, #12/4 SJO, 20 A, 250 VAC
- MPN: HBLI45124
- UPC: 783585669274
- PPN: HBL-HBLI45124
- UNSPSC: 26121635
CAD
$2141.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
White Industrial Reel, UL Type 1, 45 Ft, #12/4 SJO, 20 A, 250 VAC
Features
- Durable, Corrosion Resistant Cast Aluminum Construction
- UL Type 1
- Multi-Position Guide Arm can be mounted in two different positions
- Positive Latch mechanism automatically maintains desired cord length
- Ratchet Lock can be disengaged in field for constant tension applications
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Current / Amperage Rating | 20 A |
| Industry Standard(s) | cULus Listed |
| Cable Active Length | 45 Ft |
| Standard | cULus Listed |
| Voltage Rating | 250 VAC |
| Engineering Drawing 1 Display Text | HBLI45124 AutoCAD Drawing |
| General Literature Asset 2 Display Text | Cord Reels |
| Number Of Wires | 4-Wire |
| Class Code | A52 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A52A510 |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 34.300 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Pallet - GTIN - Package | 70783585669273 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Cable Length | 45 Ft |
|---|---|
| Width | 14.700 in |
| Application | Industrial |
| Cable Type | #12/4 SJO |
| Type | Standard Reel With Leads |
| Voltage Rating Description | 250 VAC |
| General Literature Asset 1 Display Text | Plenum Rated Cord Reel Enclosure |
| General Literature Asset 3 Display Text | Pulp & Paper Solutions |
| Style | Leaded |
| Description - Invoice | IND REEL, UL TYPE 1, 45' SJO, 12/4, WH |
| Harmonization Code | 8544493080 |
| MSDS Flag | No |
| Series | inREACH® Series |
| BOX SIZE | 16.800x16.800x14.700 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585669274 |
| Case Weight | 34.300 lb. |
| Pallet Height | 33.600 in |
| Pallet Weight | 480.200 lb. |
| NAICS Code | 335931A107 |
