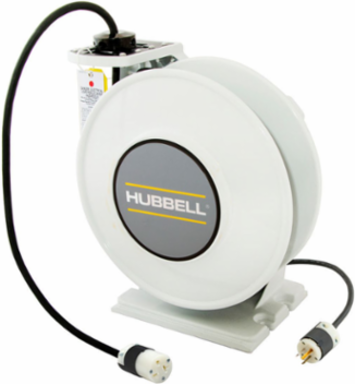

Hubbell Wiring Device-Kellems HBLI45123C20 White Industrial Reel 45 Ft #12/3 SJO 20 A 125 VAC
Hubbell Wiring Device-Kellems HBLI45123C20 White Industrial Reel 45 Ft #12/3 SJO 20 A 125 VAC
- MPN: HBLI45123C20
- UPC: 783585669182
- PPN: HBL-HBLI45123C20
- UNSPSC: 26121635
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2147.48/ EA
Description
White Industrial Reel with HBL5369C, UL Type 1, 45 Ft, #12/3 SJO, 20 A, 125 VAC
Features
- Durable, Corrosion Resistant Cast Aluminum Construction
- UL Type 1
- Multi-Position Guide Arm can be mounted in two different positions
- Positive Latch mechanism automatically maintains desired cord length
- Ratchet Lock can be disengaged in field for constant tension applications
Specifications
Specifications
- Country of Origin
- Mexico
- Current / Amperage Rating
- 20 A
- Application
- Industrial
- Cable Type
- #12/3 SJO
- Voltage Rating
- 125 VAC
- General Literature Asset 1 Display Text
- Wiring Device Solutions for Strategic Manufacturing Facilities
- General Literature Asset 3 Display Text
- Cord Reels
- Style
- Single Outlet
- Description - Invoice
- IIND REEL, W/HBL5369C, 45' SJO, 12/3, WH
- Harmonization Code
- 8544429090
- MSDS Flag
- No
- Sub Class Code
- A52A510
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 24.189 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Pallet - GTIN - Package
- 70783585669181
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Cable Length45 Ft
Width14.400 in
Cable Active Length45 Ft
TypeReel With Connector Body
Engineering Drawing 1 Display TextHBLI45123C20 AutoCAD Drawing
General Literature Asset 2 Display TextPlenum Rated Cord Reel Enclosure
Number Of Wires3-Wire
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberHBL45123C20W
SeriesinREACH® Series
BOX SIZE16.900x16.500x14.400 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00783585669182
Case Weight24.189 lb.
Pallet Height33.800 in
Pallet Weight505.600 lb.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
