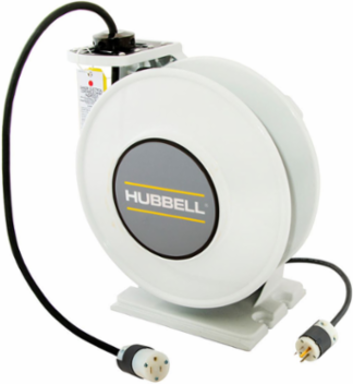

Hubbell Wiring Device-Kellems HBLI45143C15 White Industrial Reel 45 Ft, #14/3 SJO, 15 A, 125 VAC
- MPN: HBLI45143C15
- UPC: 783585669083
- PPN: HBL-HBLI45143C15
- UNSPSC: 26121635
CAD
$2102.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
White Industrial Reel with HBL5269C, UL Type 1, 45 Ft, #14/3 SJO, 15 A, 125 VAC
Features
- Durable, Corrosion Resistant Cast Aluminum Construction
- UL Type 1
- Multi-Position Guide Arm can be mounted in two different positions
- Positive Latch mechanism automatically maintains desired cord length
- Ratchet Lock can be disengaged in field for constant tension applications
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Current / Amperage Rating
- 15 A
- Industry Standard(s)
- cULus Listed
- Cable Active Length
- 45 Ft
- Standard
- cULus Listed
- Voltage Rating
- 125 VAC
- General Literature Asset 1 Display Text
- Plenum Rated Cord Reel Enclosure
- General Literature Asset 3 Display Text
- Pulp & Paper Solutions
- Style
- Single Outlet
- Description - Invoice
- IND REEL, W/HBL5269C, 45' SJO, 14/3, WH
- Harmonization Code
- 8544429090
- MSDS Flag
- No
- Sub Class Code
- A52A510
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 33.100 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- NAICS Code
- 335931A107
Cable Length45 Ft
Width14.200 in
ApplicationIndustrial
Cable Type#14/3 SJO
TypeReel With Connector Body
Engineering Drawing 1 Display TextHBLI45143C15 AutoCAD Drawing
General Literature Asset 2 Display TextCord Reels
Number Of Wires3-Wire
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberHBL45123C
SeriesinREACH® Series
BOX SIZE16.900x16.700x14.200 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00783585669083
Case Weight33.100 lb.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
