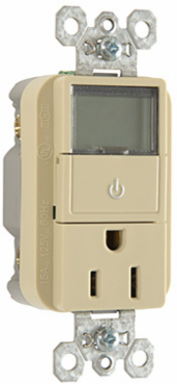

Pass & Seymour PLT26251LA Heavy Duty 15A 125V Plug Load Timer Receptacle, Light Almond, 1.25 Inch Depth

MPN: PLT26251LA
UPC: 785007040111
PPN: P-S-PLT26251LA
UNSPSC: 39121406

$130.10

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Heavy Duty 15A 125V Plug Load Timer Receptacle, Light Almond, 1.25 Inch Depth

Features

Wire Size: #14 - #10 AWG Copper Conductor Only

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China
Height	2.68 in
Color	Light Almond
Amperage	15.0 A
Number of Poles	Double Pole
Environmental Conditions	UL94 V2
Dielectric Strength	Withstands 2000V minimum
Standard	RoHS; CSA Listed; CulUS; UL Listed; FSUL; FEDSPEC
Voltage	125.0 V
NEMA Configuration Code	5-15R
Wall Plate Included	No
Connection Location	Back and Side
Wire Connection Type	Screw Terminals
Indoor/Outdoor	Indoor
Operating Temperature Max	60.0 °C

Depth	1.25 in
Width	1.73 in
Product Line	Pass & Seymour
Application Sector	Commercial
Phase	Single
Special Features	New requirements for reducing energy consumption in commercial buildings are here. With devices that are so easy to understand, install and use, our full line of Pass&Seymour Plug Load Controllable solutions will take a load off your mind and a load off your customers' electric bills.
Number of Wires	3.0
Wire Size	14 - 10 AWG
Warranty Type	1-Year Limited Warranty
Operating Temperature	-40°-60°C
Operating Temperature Min	-40.0 °C
Number of Receptacles	1.0
Outlet Type	Energy Saving On/Off
Features	Brass Mounting Strap; Timer; Plugload
