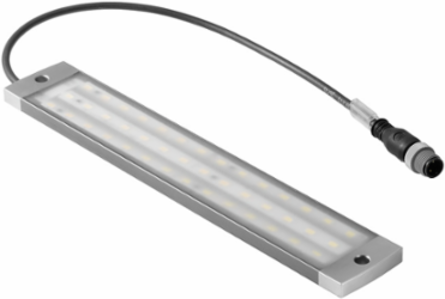

Weidmuller 2436210000 WIL-STANDARD-0.3-SCREW-SW-WHI
- MPN: 2436210000
- PPN: WDM-2436210000
CAD
$213.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
WIL-STANDARD-0.3-SCREW-SW-WHI
Documentation & Downloads
Specifications
Approvals
| Approvals | CE, CULUS |
|---|---|
| UL File Number Search | E354496 |
| ROHS | Conform |
|---|

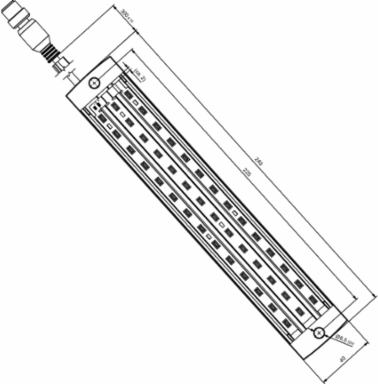

Dimensions And Weights
| Width | 240 mm |
|---|---|
| Height | 8 mm |
| Depth | 40 mm |
| Net weight | 200 g |
| Width (inches) | 9.449 inch |
|---|---|
| Height (inches) | 0.315 inch |
| Depth (inches) | 1.575 inch |
Standards
| Certificate no. (cULus) | E354496 |
|---|
Connection Data
| Version | pin, straight |
|---|---|
| Connection thread | M12 |

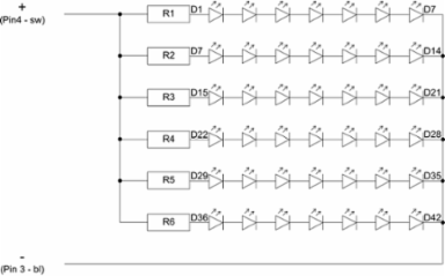

| Wiring | Pin 4 (Strand: black) control white LED, Pin 3 (Strand: blue) |
| Coding | A |
|---|---|
| Tightening torque | 0.8 Nm |
General Technical Data
| Number of LEDs | 42 |
|---|---|
| Luminosity | 3,470 cd |
| Emitting angle | 40 ° |
| Operating life | 60.000 h |
| Drill hole spacing | 225 mm |
| Protection degree | IP67 |
| Light colour (CCT) | 6500K, White |
|---|---|
| Light current | 711 lm |
| Illumination level | 245 lux |
| Type of mounting | Screw mounting |
| Impact resistance | IK05 |
Cable Technical Specifications
| Cable Material | PUR |
|---|---|
| Cable length | 0.3 m |
| Sheathing colour | black |
|---|
Electric Data
| Rated voltage (text) | 24 V DC |
|---|---|
| Power | 8,5 W |
| Rated current | 0,42 A |
|---|---|
| Dimmable | Yes |
Material Data
| Housing main material | hard anodised aluminium |
|---|---|
| Threaded ring material | PA |
| Encapsulation compound | PUR V0 |
|---|---|
| Material of end caps | Diecast zinc, nickel-plated |
Classifications
| ETIM 6.0 | EC001959 |
|---|---|
| eClass 9.0 | 27-11-06-40 |
| eClass 10.0 | 27-11-06-40 |
| ETIM 7.0 | EC001959 |
|---|---|
| eClass 9.1 | 27-11-06-40 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 60 °C |
|---|---|
| Operating temperature | -20 - 60°C |
| Operating temperature, min. | -20 °C |
|---|
