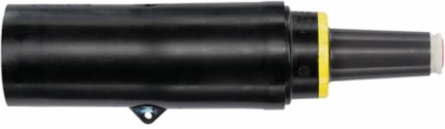

Thomas & Betts 655BEA3 WINDOW OP- CA 600 A
- MPN: 655BEA3
- UPC: 783786374205
- PPN: T-B-655BEA3
- UNSPSC: 26121630
CAD
$1083.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15kV 600 Series Loadbreak Stick-Op Bushing Adapter, Window OP CA, 600AT assembly tool required for operation and/or installation of Stick-Op.
Specifications
Additional Information
| Application | Mates with a 600 Amp bushing interface and provides a 200 Amp loadbreak tap. An access hole thru the bore of the reducing tap plug allows use of a 600AT operating tool to bolt and secure the component to a mating 600 Amp bushing apparatus. |
|---|---|
| Effective Date | 20120131 |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Size | 3.10 inch (78.7 mm) Diameter |
| Standards | ANSI/IEEE Standard 386 |
| Brand / Label | Elastimold |
|---|---|
| Material | EPDM Rubber |
| Product Type | Bushing Adapter |
| Special Functions | 15Kv Tap, 200 Amp Loadbreak RatedIncludes hex-broach for torque installation. Peroxide-cured insulation and jacket. All copper current path. Constructed of EPDM molded rubber. Converts a 650 series Bushing Interface to a 200 Amp Loadbreak Interface. |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
