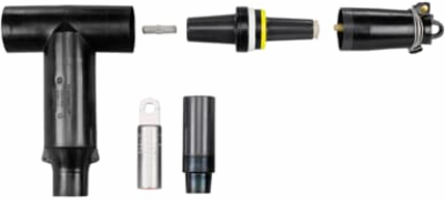

Thomas & Betts K655ETP-J0270-DRG-S 25KV WINDOW OP 600A W-SEALING
- MPN: K655ETP-J0270-DRG-S
- UPC: 075114420198
- PPN: T-B-K655ETP-J0270-DRG-S
- UNSPSC: 39121421
CAD
$1344.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
25kV, 600 Amp Deadbreak, Test and Ground Connector Kit. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size 4/0 Compressed Stranded AWG or 250 kcmil Compacted Solid. With Insulated Cap. Cold-Shrinkable Jacket Seal Included.
Features
- Includes Seal and Insulated Cap
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | ELASTIMOLD |
| Connection | Compression |
| Size | Elbow 12.5 inch long |
| Material | Housing - EPDM Rubber |
| Color | Black |
| Insulation | EPDM Rubber |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | 600 Amps, 25kV |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | 4/0 COMPR/STR AWG , 250 COMPT/SOL kcmil |
| Voltage Rating | 25 kV |
| Amperage Rating | 600 A |
| Temperature Rating | -40 to +65 C |
