Thomas & Betts 755ETP-M0330-SG3 35KV 600A WINDOW OP-ETP W-SEALING
- MPN: 755ETP-M0330-SG3
- UPC: 075114403238
- PPN: T-B-755ETP-M0330-SG3
- UNSPSC: 39121421
CAD
$1692.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

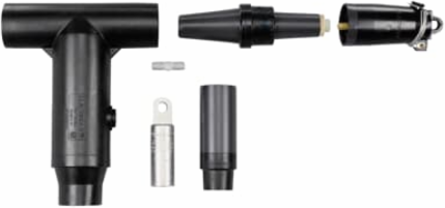

600 Amp, 35kV, Deadbreak, Test and Ground Connector kit, includes reducing tap plug, elbow housing, cable adapter and 0370 style compression lug. 600ATM assembly tool required, 50-60 foot/pounds torque wrench required but not included. Aluminum Compression Lug. Cable Insulation Diameter 1.370 inch to 1.630 inch. Conductor Size Compressed Stranded 500 kcmil or Compacted Solid 600 kcmil. Includes Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.
Features
- Includes Cold-Shrinkable Seal with Copper Rod and Constant Force Spring
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | ELASTIMOLD |
| Connection | Compression |
| Conductor Range | 500 STR/COMPR kcmil , 600 SOL/COMPT kcmil |
| Voltage Rating | 35 kV |
| Amperage Rating | 600 A |
| Temperature Rating | -40 to +65 C |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | 600 Amps, 35kV |
| Standard | ANSI/IEEE Standard 386 |
| Material | Housing - EPDM Rubber |
| Color | Black |
| Insulation | EPDM Rubber |
