Thomas & Betts 655CETP-M0360DRG-OMA 15KV 600A WINDOW OP W-SEALING
- MPN: 655CETP-M0360DRG-OMA
- UPC: 075114376631
- PPN: T-B-655CETP-M0360DRG-OMA
- UNSPSC: 39121421
CAD
$1913.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

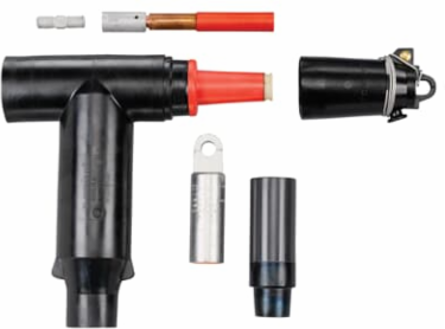

600 Amp, 15kV, Combo T Elbow, 200 Amp Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap Kit, No Test Point, Aluminum, Cable Insulation Diameter 1.370 inch to 1.630 inch. Conductor Size 360 - 650 kcmil Stranded/Compressed or 750 kcmil Solid/Compact. OMA - Metallic Tape Shield Adapter.
Features
- Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | ELASTIMOLD |
| Connection | Compression |
| Size | 13.31 inches width, 10.88 inch bottom edge to center of bushing |
| Material | Housing - EPDM Rubber |
| Color | Black |
| Insulation | Yes EPDM Rubber |
| Environmental Conditions | All Weather Conditions |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | 600 Amps, 15kV Connector |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | 650 STR/COMPR kcmil , 750 SOL/COMPT kcmil |
| Voltage Rating | 15 kV |
| Amperage Rating | 600 A |
| Temperature Rating | -40 to +65 C |
