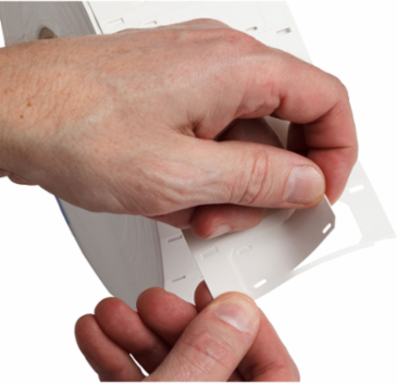

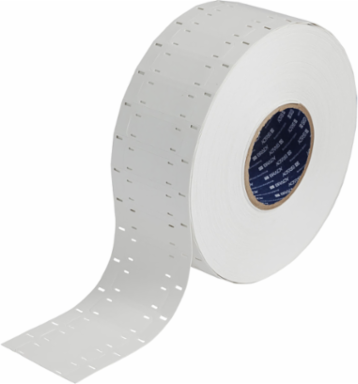

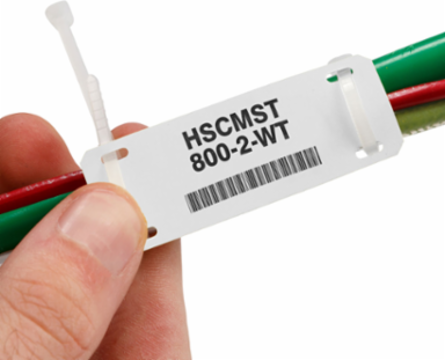

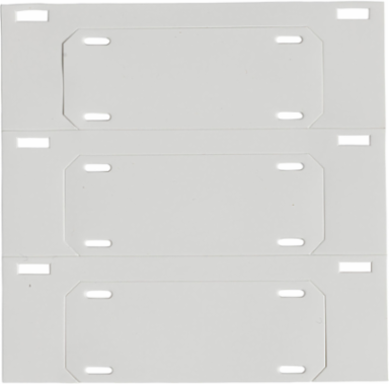

Brady HSCMST-800-2-WT-1 Wire and Cable Identification Tags .8"H x 2.025"W Polyolefin RL/1000
- MPN: HSCMST-800-2-WT-1
- UPC: 754473615956
- PPN: BRD-HSCMST-800-2-WT-1
- UNSPSC: 39131504
CAD
$1799.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Keep your thick cables and cable bundles identified in every environment with high-performance cable tags.
Features
- B-388 standard temperature performance tags are ideal for use in the aerospace, satellite and defense industries
- Unique product design that reduces foreign object debris and wire abrasion
- Superior legibility even after exposure to industrial solvents
- Material is highly conformable to cables and cable bundles to reduce footprint
- Excellent crack resistance at high and low temperatures
- Operating temperature of -67 to 275° F (-55 to 135° C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Color
- White
- Finish
- Matte
- For Use with Printer
- BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
- Primary Noun, Basic Function
- Tag
- Printer Compatibility
- BBP72; IP300; IP600; PR200Plus; PR300Plus; PR600Plus; i7100; i5100
- Quantity per Row
- 1
- Recommended Ribbon Series
- R6600
- Shape
- Rectangle
- Total Qty per Pack
- 1000 Tag / Roll
- Adhesive (Y/N)
- No
- Indoor or Outdoor Use
- Indoor Use
- Material Properties
- Rigid
- SAP B-Number
- B-388
- Dimensions
- 0.8 in H x 2.025 in W
- Dimensions 2
- 0.8 in H x 2.025 in W
- Height (mm/cm/m)
- 20.32 mm
- Maximum Service Temperature °F
- 392 °F
- Minimum Service Temperature °F
- -67 °F
- Sign Size-General
- 0.8 in x 2.025 in
- Thickness (in/ft/yd)
- 0.02 in
- Vertical Repeat (mm)
- 25.40 mm
- Web Width (mm/cm/m)
- 76.20 mm
- Width (mm/cm/m)
- 51.44 mm
Brand NameBrady®
DiagramIcon 39 (downwards triangle with centre dot)
Flame RetardantYes
Number of Holes4
Printer and Label ApplicationsGeneral Identification; Wire & Cable
Quantity per Roll1000
Recommended RibbonIP-R6600; R6600
Ribbon SeriesR6000HF; R6600
Suggested Ribbon SeriesR6600
Total Quantity1000
Brady Material NumberB-388
MaterialPolyolefin
Resistance PropertiesFlame-Retardant
Core Diameter (mm/cm/m)76.20 mm
Dimensions (Metric)50.80 mm W x 20.32 mm H
Height (in/ft/yd)0.8 in
Maximum Service Temperature °C200 °C
Minimum Service Temperature °C-55 °C
Roll/Tape Size (in/ft/yd)0.8 in H x 2.025 in W
Size - Width (mm)50.80 mm
Thickness (mm/cm/m)0.508 mm
Web Width (in/ft/yd)3.0 in
Width (in/ft/yd)2.025 in
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliant
- Yes
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
EU RoHS CompliancePass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
