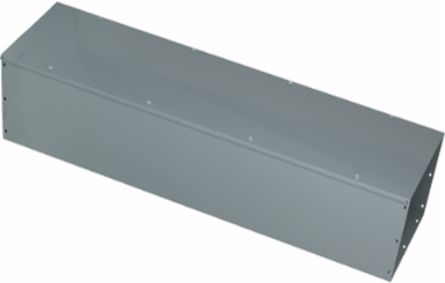

Square D LDB124 Wireway, Square-Duct, 12 inch by 12 inch, 4 feet long, hinged cover, N1 paint, NEMA 1

Wireway, Square-Duct, 12 inch by 12 inch, 4 feet long, hinged cover, N1 paint, NEMA 1
  • MPN: LDB124
  • UPC: 785901104001
  • PPN: SCH-LDB124

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$547.32/ EA

Description

Square-Duct outdoor raintight wireway is used to protect electrical wiring against rain, sleet, and physical damage. Raintight troughs are designed for ganging meter devices, panelboards, switches, and circuit breaker enclosures. Each length is a completely enclosed section with a removable cover that has provisions for sealing. This Square-Duct raintight trough is 12 inches by 12 inches and 4 feet long. This wireway is constructed of 14 gauge galvanized steel and is rated NEMA Type 3R. Square-Duct wireway is UL listed and CSA certified.

Specifications

Specifications

Product Certifications
UL listed || CSA
Range Of Product
SQUARE-Duct
Nema Degree Of Protection
NEMA 1
Trunking Length
4 ft
Trunking Dimension
12 x 12 in
Cover Typehinged cover
Enclosure Materialsteel 14 gauge without knock-outs
Surface Finishgrey polyester powder ANSI 49
Product Or Component Typestraight length

Offer Sustainability

China Rohs Regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Mercury Free
Yes
Eu Rohs Directive
Compliant
Reach Free Of Svhc
Yes
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold

Contractual warranty

Warranty
18 months
