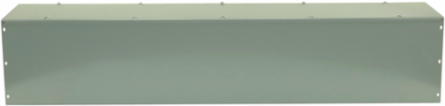

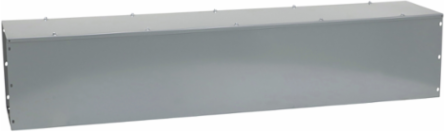

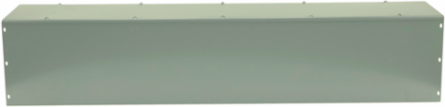

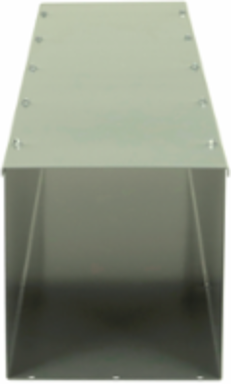

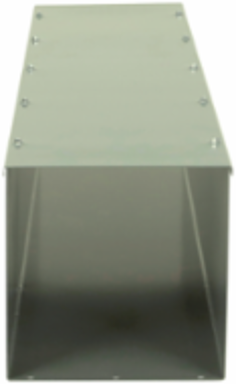

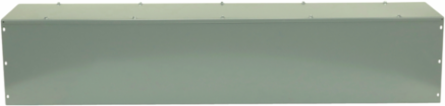

Square D LDB125 Square-Duct Wireway 12 Inch x 12 Inch 5 Feet Long Hinged Cover NEMA 1
- MPN: LDB125
- UPC: 785901104025
- PPN: SCH-LDB125
- UNSPSC: 39131710
CAD
$631.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square-Duct outdoor raintight wireway is used to protect electrical wiring against rain, sleet, and physical damage. Raintight troughs are designed for ganging meter devices, panelboards, switches, and circuit breaker enclosures. Each length is a completely enclosed section with a removable cover that has provisions for sealing. This Square-Duct raintight trough is 12 inches by 12 inches and 5 feet long. This wireway is constructed of 14 gauge galvanized steel and is rated NEMA Type 3R. Square-Duct wireway is UL listed and CSA certified.
Features
- Item is no longer a stock item but is available for purchase through a configuration tool with your local distributor.
- Shields wiring from contaminants.
- Open on one side for easy wire/cable placement.
- Quick installation without wire pulling.
- Simplifies maintenance and cable adjustments.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Physical Attributes
| Trunking Length | 5 ft |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | UL Listed, CSA |
| Local Publishable Date | 2025-11-19 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Enclosure Material | steel 14 gauge without knock-outs |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | SQUARE-Duct |
| Surface Finish | Gray polyester powder ANSI 49 |
| Trunking Dimension | 12 x 12 in |
| Customs Code | 7326908688 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1924 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Cover Type | hinged cover |
| Energy Efficiency Optimized | False |
| Product Or Component Type | straight length |
| Returnability | Yes |
| Sustainable Packaging | No |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Nema Degree Of Protection | NEMA 1 |
| Packaging Without Single Use Plastic | No |
General Attributes
| Product Or Component Type | straight length |
|---|
| Range Of Product | SQUARE-Duct |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
